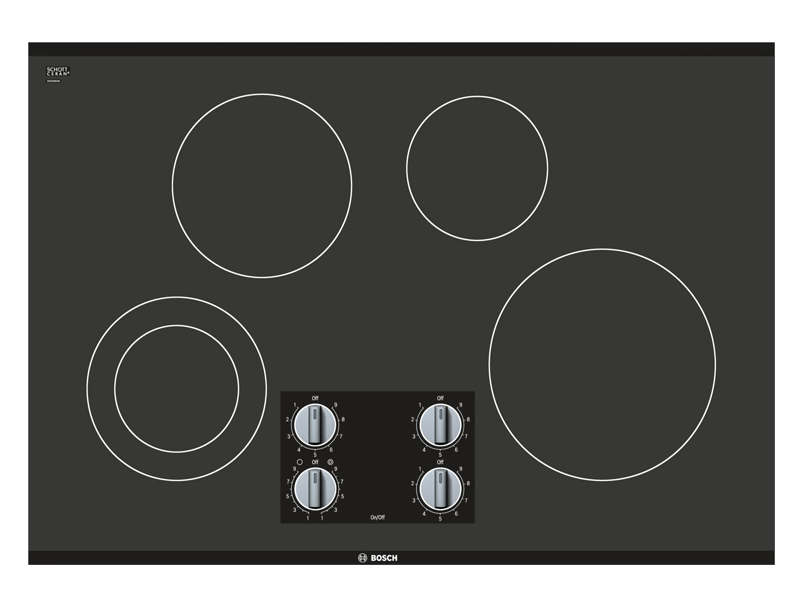

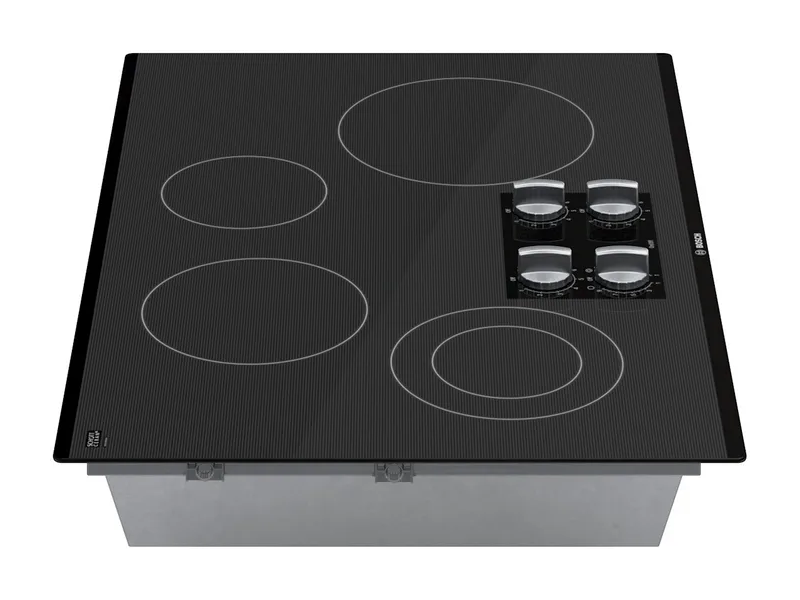

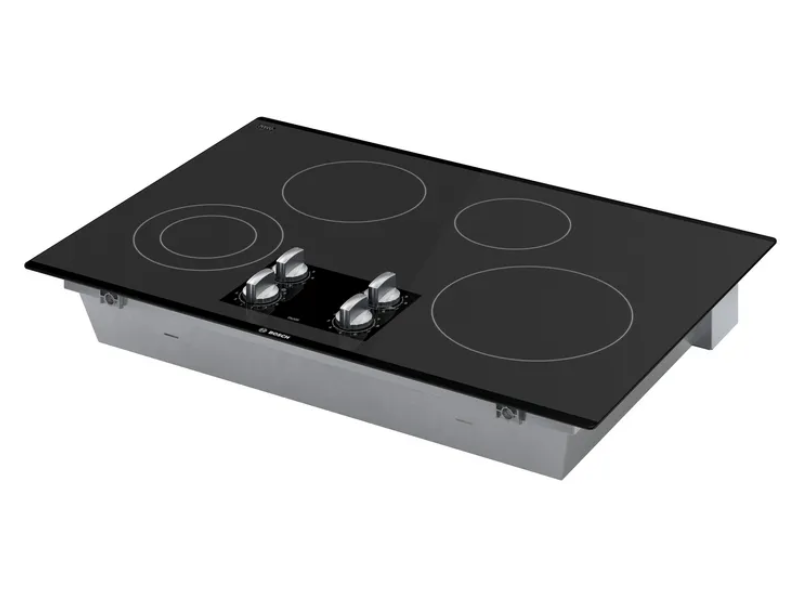

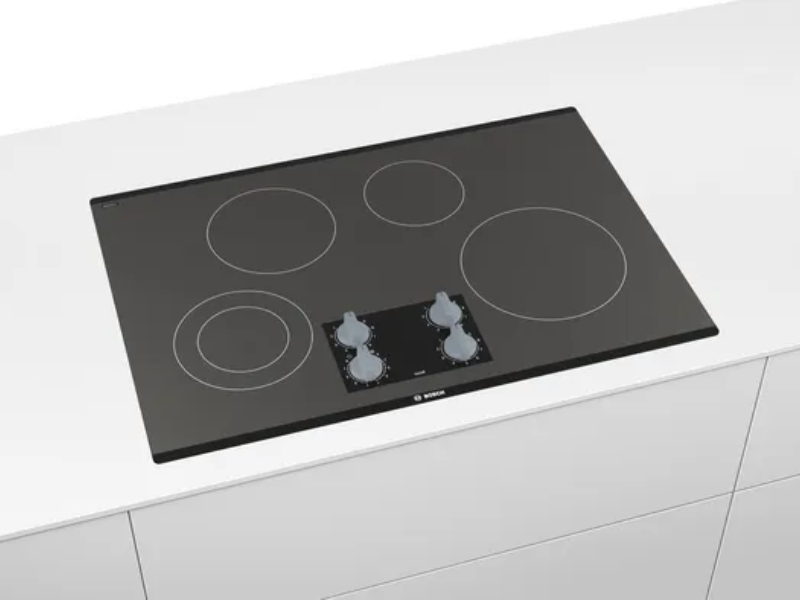

30" Bosch 500 Series Black Frameless Electric Cooktop - NEM5066UC

Category : Cooktops
SKU : NEM5066UC

WAS $1,849.00
$1,599.00 CAD

Literature
  • Infinite Temperature Controls for Precision Cooking
  • Dual Element Offers the Capability to use Multiple Pan Sizes

Design

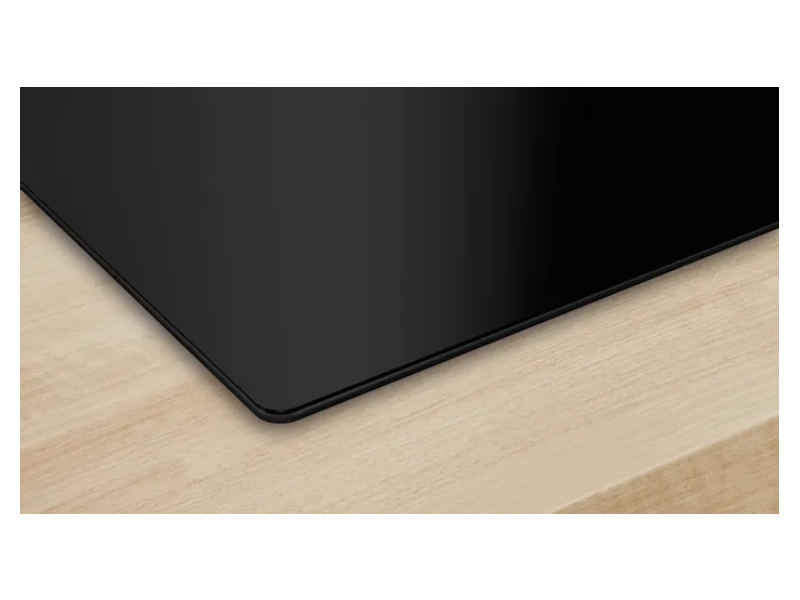

  • Black-glass Seemless Design
  • Cooktop Design Coordinates with Bosch Ovens and Ventilation

Performance

  • Dual Element Offers the Capability to use Multiple Pan Sizes
  • Infinite Temperature Controls for Precision Cooking
  • Powerful 2,500W Right-Front Burner for Faster Boil Times

Safety

2-Level Heat Indicator - Warns if Cooktop is Warm or Hot

Technical Specifications
Overall appliance dimensions (HxWxD) (in)1/4"+4" x 31" x 21 1/4"
Energy sourceElectric
Plug typeNo plug
Frequency (Hz)60 Hz
Volts (V)240/208 V
Current (A)30/30 A
Watts (W)7,200 W
Approval certificatesCSA
Sealed BurnersNo
Dimension of 4th heating element (in)9"
Power of 4th heating element (W)2.5 kW
Location of 4th heating elementfront right
Dimension of 3rd heating element (in)6"
Power of 3rd heating element (W)1.2 kW
Location of 3rd heating elementback right
Dimension of 2nd heating element (in)7"
Power of 2nd heating element (W)1.8 kW
Knob MaterialPlastic
Location of 2nd heating elementback left
Location of 1st heating elementfront left
Dimension of 1st heating element (in)7"; 5"
Power of 1st heating element (W)0.7 ; 1.7 kW
Total number of cooktop burners4
Required cutout size (HxWxD) (in)4" x 28 7/8" x 20"
Product packaging dimensions (HxWxD) (in)7 7/8" x 37 3/8" x 24"
Minimum distance from counter front (in)2 1/4"
Minimum distance from rear wall (in)2"
Net weight (lbs)25 lbs
Gross weight (lbs)34 lbs
