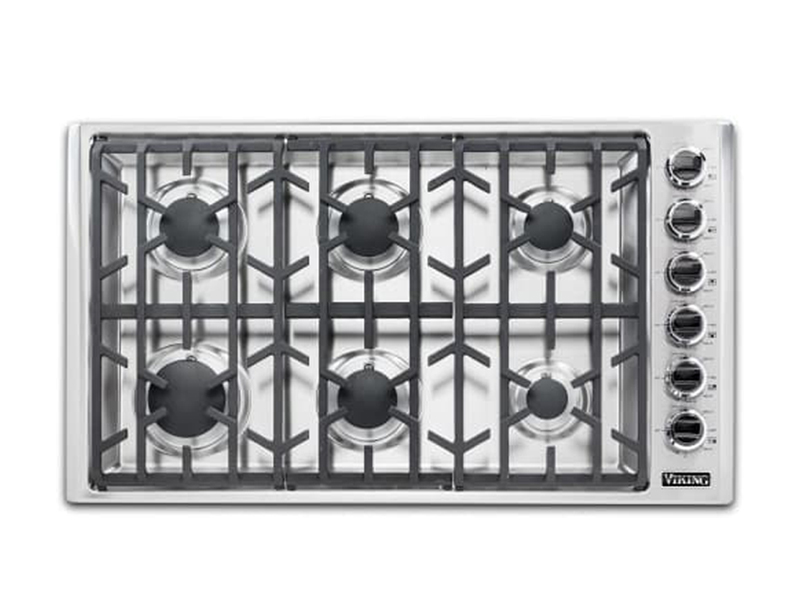

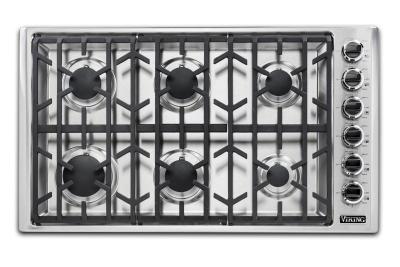

36" Viking Professional 5 Series Stainless Steel Natural Gas Cooktop - VGSU53616BSS
You may also like
Features
Permanently Sealed Burners
Highest combined BTU rating in the industry, featuring sealed burners with brass burner rings in a wide variety of sizes.
High Performance Commercial-Type Burners
Powerful 18,000 BTU burner delivers commercial power for high heat sauteing, rapid boiling and quick recovery.
SureSpark Ignition System
Exclusive SureSpark Ignition System ensures automatic ignition/re-ignition should flame extinguish at any time while cooking.
Simmer Settings
Simmer settings on all burners allows low BTU output for heating delicate sauces.
ScratchSafe Grate Design
Exclusive ScratchSafe Grate Design provides ultimate protection from scratches and ensures proper placement of the heavy-duty, porcelain-coated cast iron grates.
Details
Commercial-Type Cooking Power
- Gas 36" Wide Cooktop
- Exclusive BlackChrome Knobs ship standard
- Left front – 18,000 BTU high
- Left rear – 10,000 BTU high
- Center/Center front – 12,000 BTU high
- Center rear – 12,000 BTU high
- Right front – 6,000 BTU high
- Right rear – 8,000 BTU high
- Highest combined BTU rating in the industry, featuring sealed burners with brass burner rings in a wide variety of sizes
- Powerful 18,000 BTU burner delivers commercial power for high heat sautéing, rapid boiling and quick recovery
- Simmer settings on all burners allows low BTU output for heating delicate sauces
- EXCLUSIVE SureSpark Ignition System ensures automatic ignition/re-ignition should flame extinguish at any time while cooking
Safe-Easy Operation
- Child proof, push-to-turn metal knobs for safe use
- Automatic electric spark ignition means no standing pilot to re-light, waste energy or add extra heat to the kitchen
- EXCLUSIVE ScratchSafe Grate Design provides ultimate protection from scratches and ensures proper placement of the heavy-duty, porcelain-coated cast iron grate
Easy Maintenance and Cleanup
- Updated commercial-type styling incorporates refined detailing
- Permanently sealed burners prevent spills from entering burner box
- Deep, seamless recessed burner pan retains liquid spills
- Durable laser-etched graphics withstand the rigors of regular cleaning
- Removable knobs, grates, and burner ports/caps make cleanup easy
Replaces Most Ordinary Cooktops
- Overall/burner box dimensions designed to fit virtually all 36" wide cooktop cutouts
Optional Accessories
- WRGVGC – Porcelain-coated cast iron wok ring fits securely over grates to accommodate a traditional wok
- PGDVGC – Portable non-stick cast aluminum griddle fits securely onto grates for griddling or defrosting food
- LPKVGC – LP/Propane Conversion Kit
- NATVGC – Natural Gas Conversion Kit
- NKHAVGC – High Altitude Natural Gas Conversion Kit
Exclusive Finishes
- Available in Stainless Steel (SS)
Model Numbers
- VGSU53616BSS – 36"W. Gas Cooktop; six burners
| Technical Specifications | |
|---|---|
| Overall Width | 36-3/4” (93.3 cm) |
| Overall Height (from bottom to top of grate) | 4-1/2” (11.4 cm) |
| Overall Depth from rear | 21” (53.3 cm) |
| Cutout Width | 33-3/4” (85.7 cm) minimum to 35-3/8” (89.9 cm) maximum |
| Cutout Height | 2-3/4” (7.0 cm) |
| Cutout Depth | 19-1/8” (48.6 cm) minimum to 20-1/8” (51.1 cm) maximum |
| Gas Requirements | Shipped Natural or LP/Propane, field convert with conversion kit (sold separately); accepts standard residential 1/2” (1.3 cm) ID gas service line |
| Electrical Requirements | 120 V 60 Hz; 4 ft. (121.9 cm), 3-wire cord with grounded 3-prong plug attached to product |
| Maximum Amp Usage | 1.0 amps |
| Surface Element Rating, Left front,Left rear Center front, Center rear, Right front, Right rear | 18,000 Nat./16,500 LP (BTU) (5.4 Nat./4.9 LP (kw), 10,000 Nat./9,000 LP (BTU) (3.0 Nat./2.7 LP (kw), 12,000 Nat./11,000 LP (BTU) (3.6 Nat./3.3 LP (kw), 12,000 Nat./11,000 LP (BTU) (3.6 Nat./3.3 LP (kw), 6,000 Nat./6,000 LP (BTU) (1.8 Nat./1.8 LP (kw), 8,000 Nat./7,000 LP (BTU) (2.4 Nat./2.1 LP (kw) |
| Approximate Shipping Weight | 80 lb. (36.0 kg) |
