36" Jenn-Air Telescoping Downdraft Ventilation - JXD7036YS

Category : Ventilation
SKU : JXD7036YS


Literature

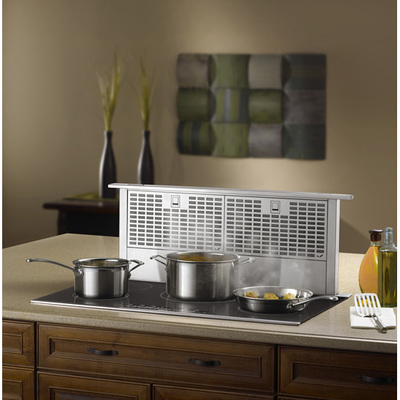

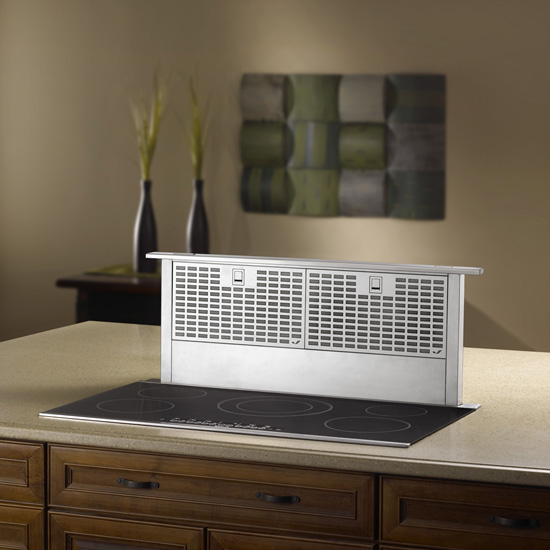

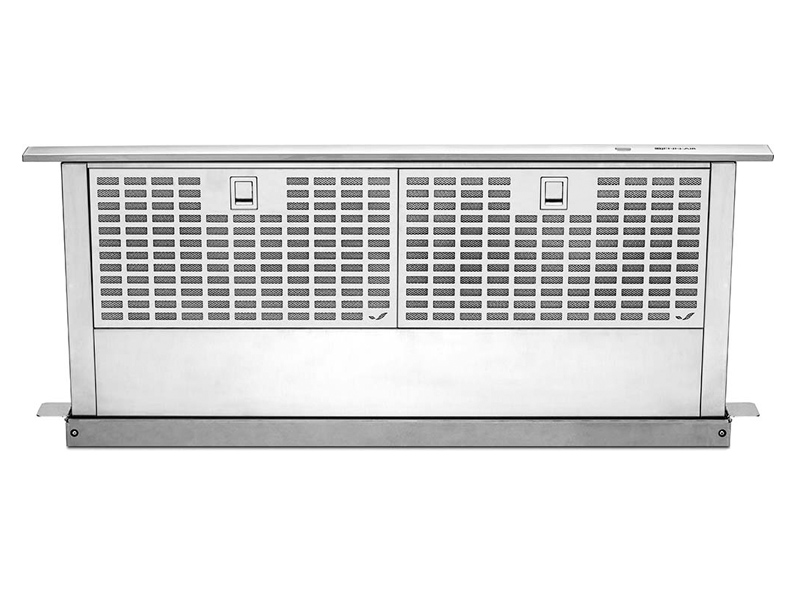

This Jenn-Air® luxury telescoping downdraft ventilation offers minimal design and powerful performance right at the cooking surface. The sleek telescoping downdraft vent appears at the touch of a button, and elegantly retracts back into the countertop when not in use.

600 CFM High-Performance Blower

A single centrifugal blower motor design allows the ventilation system to operate at up to 600 CFM to quickly remove smoke, steam and cooking odors.

14-Inch Rise

For maximum effectiveness, the telescoping downdraft extends 14 inches from the countertop to efficiently capture smoke, steam and cooking odors while you cook.

Reversible Motor Box

Designed for flexibility, the reversible motor box can be positioned to face the front or back of cabinets to accommodate more installation options.

Four Fan Speed Settings

Four different settings on this luxury telescoping downdraft ventilation allow you to control the ventilation level for optimum performance and energy efficiency.

Dishwasher-Safe Premium Mesh Filters

These aluminum mesh filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.

6-Inch Round Exterior Venting

The 6-inch round exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.

3 1/4" x 10" Rectangular Exterior Venting

The 3¼" x 10" rectangular exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.

Hidden Slide Controls

This luxury telescoping downdraft ventilation achieves its sleek appearance with controls that are hidden from sight.

Automatic Shutoff When Retracted

This feature provides peace of mind by ensuring that the blower will always be turned off once the hood has been lowered into the countertop.

Integrated Styling

This luxury telescoping downdraft ventilation, which integrates into countertops and islands, allows you achieve a streamlined look.

Slim Profile

The telescoping downdraft ventilation’s slim profile takes up minimal space on a countertop or island.

Configuration and Overview
Hood TypeDowndraft
Venting TypeExterior
Fan CFM600
Dimensions
Width36
Depth20
Height28 7/8
CONTROLS
Control TypePush Button
Control LocationHidden
Number of Fan Speeds4
Removable Grease FilterYes
