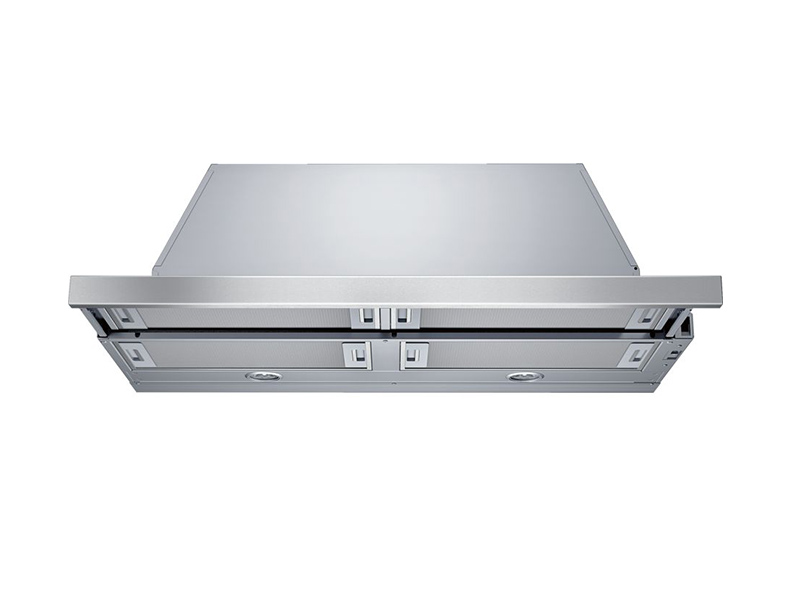

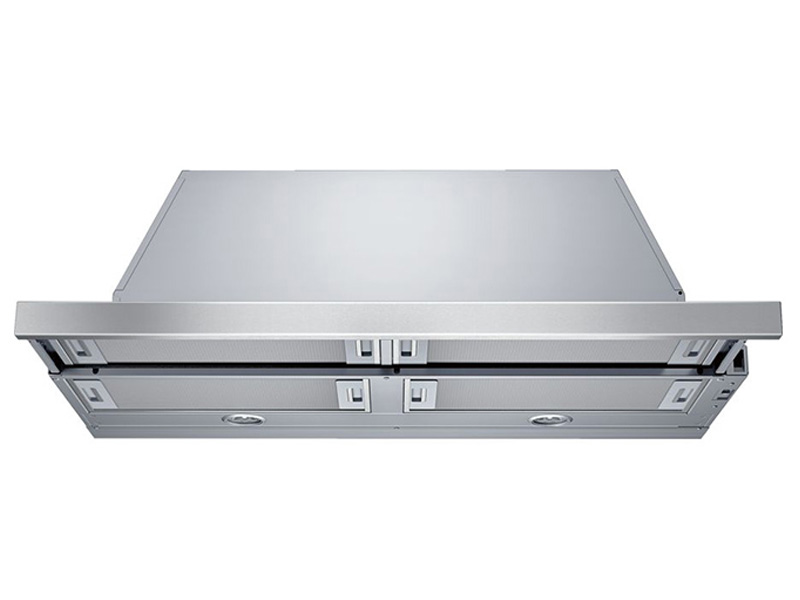

36" Bosch Pull-Out Hood With 500 CFM In Stainless Steel - HUI56551UC

Category : Ventilation
SKU : HUI56551UC

WAS $1,749.00
$1,549.00 CAD

Literature

This sleek, 36" integrated pull-out hood allows you to close the hood when not in use, providing a flush-look with cabinetry

  • Front stainless steel panel is replaceable with custom cabintery panel
  • 500 CFM integrated blower included & recirculation kit available for sale
  • 3 speed slider control & 2 halogen lights
  • Absorbs odors with Charcoal Replacement Filters (Available for sale)
  • For local Make-Up Air requirements, CFM reducer kit can be purchased

Design

  • The Pull-Out Hood Visor Fully Extends During Use, and Neatly Tucks Away When not Needed
  • Front Stainless Steel Visor Panel can be Replaced with the User's Own Custom Strip to Match Surrounding Cabinetry (Custom Strip Not Provided)

Performance

  • 500 CFM Integrated Blower Included
  • Three Speed Slider Control
  • 2 Halogen Lights - 120 V, 20 Watt Max., G-4 Base
  • 6 inch Round Duct At Discharge

Efficiency

  • Absorbs odors with charcoal replacement filters (Separate Purchase Required)

Convenience

  • Aluminum Mesh Filters are dishwasher safe for ease of cleaning

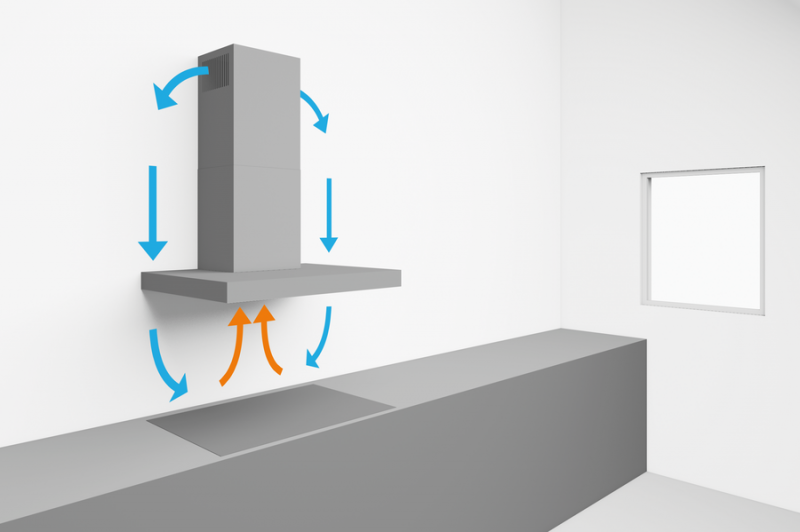

  • Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
  • For areas with Make-Up Air Requirements, our CFM Reducer Kit reduces the CFM to under 300 (Separate Purchase Required)
Connection
Volts (V)120 V
Total output power of the motors330 W
Total power of the lamps (W)20 W
Frequency (Hz)60 Hz
Power cord length (cm)127 cm
Watts (W)370 W
Construction type
TypologyPull-out
Operating ModeConvertable: Ducted / Recirculating
MaterialStainless steel
Number of motors1
Installation TypeBuilt-in
Diameter of air duct (mm)150 mm
Certifications
Home ConnectNo
General
Type of controlSlide switch
Operating ModeConvertable: Ducted / Recirculating
Construction typeBuilt-in
Depth of the product279 mm
