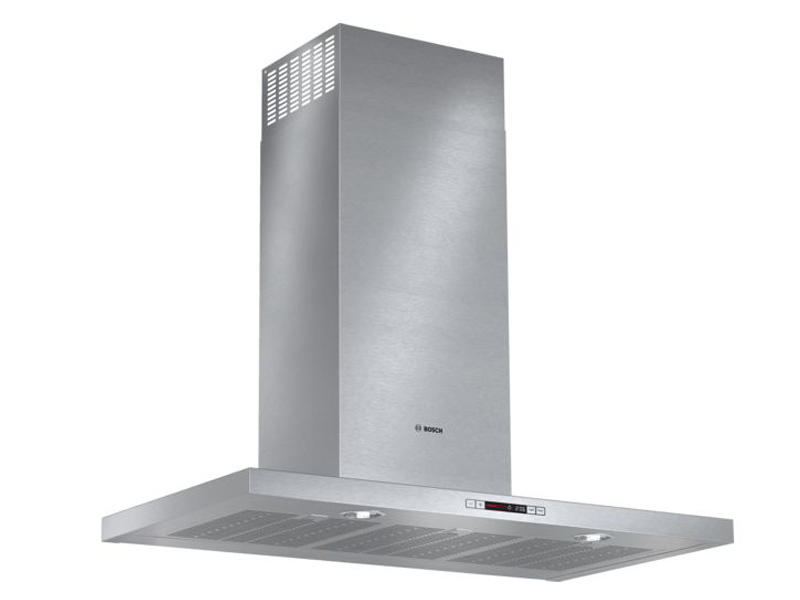

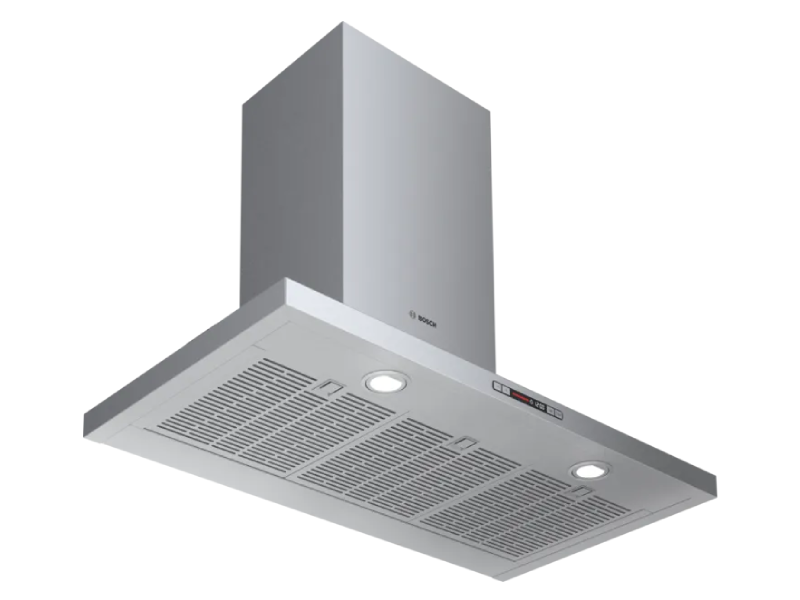

36" Bosch 500 Series Box Canopy Chimney Hood Stainless Steel - HCB56651UC

Category : Ventilation
SKU : HCB56651UC

WAS $2,649.00
$2,299.00 CAD

Literature

Wall Mounted Chimney Hoods Add Style and Sophistication to the Kitchen and Gives You Greater Freedom in Your Kitchen Planning

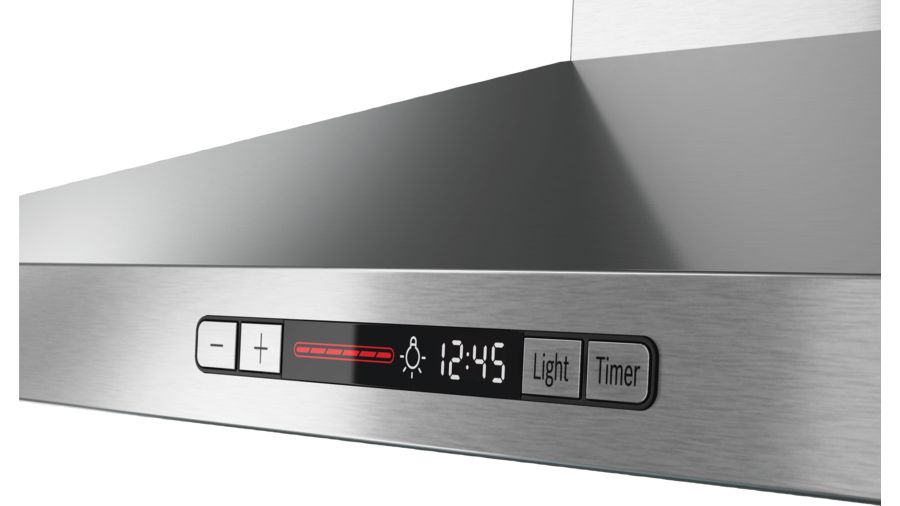

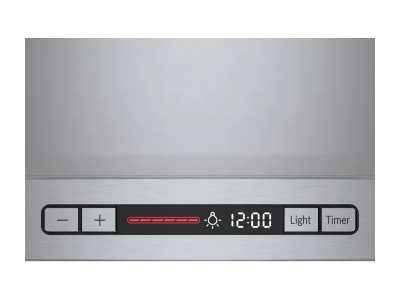

  • Touch Controls with LCD Display
  • 600 CFM Centrifugal Integrated Blower Included
  • Four Speed Touch Controls with LCD Display

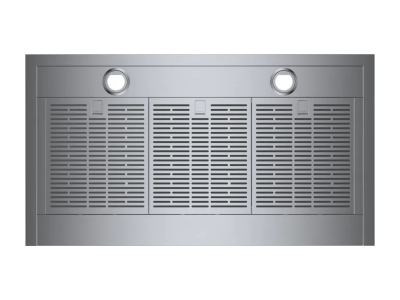

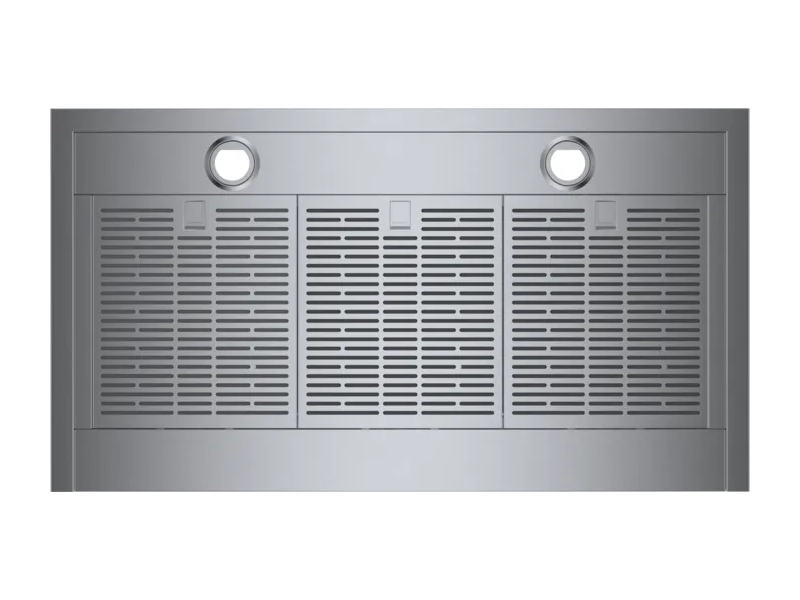

  • Dishwasher Safe Filters with Stainless Steel Covers

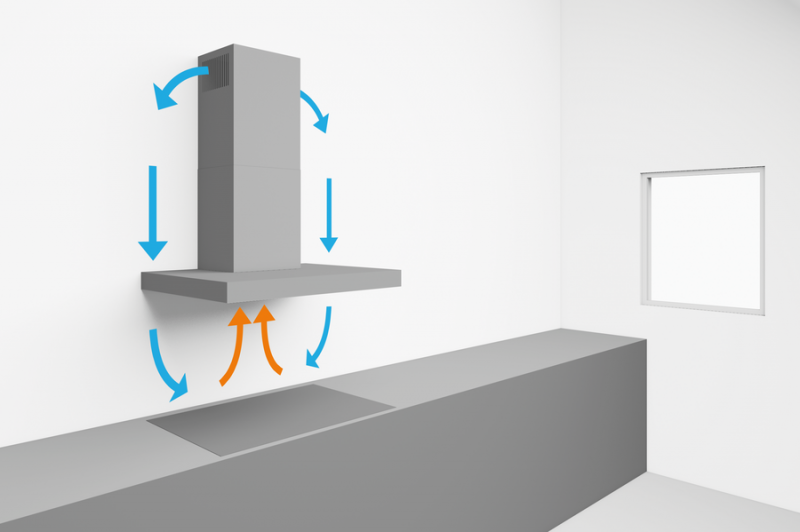

  • Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)

Design

  • Duct Extension Accessory Kit Available for 9' to 12' Ceilings

Performance

  • 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base

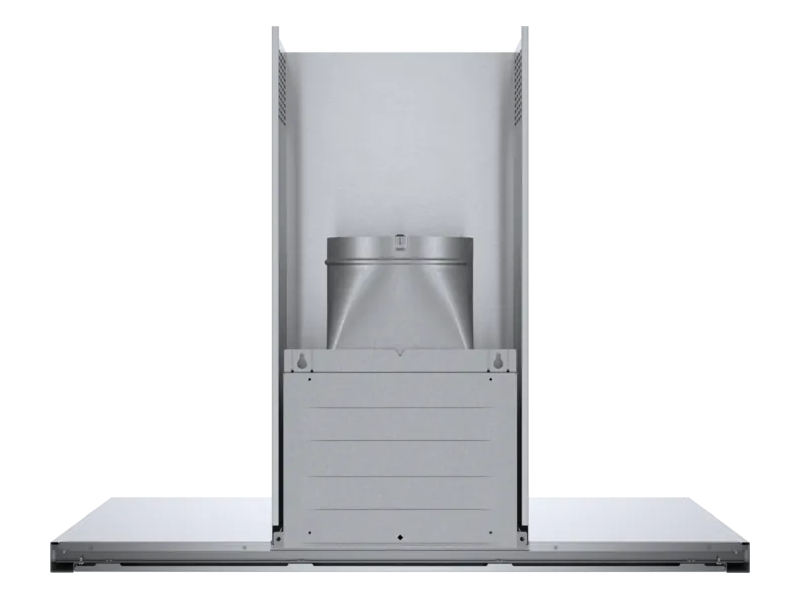

  • 8" round duct at discharge.

Efficiency

  • Blower will automatically turn on at high speed if excessive heat is sensed in the control area.
  • Absorb odors with charcoal replacement filters.

Convenience

  • Convenient timer built into control from 1-60 minutes.
  • Signal on LCD display will illuminate as a reminder to check filters for cleaning.
  • Audible tone when select controls are pressed.
Connection
Volts (V)110 V
Total output power of the motors450 W
Total power of the lamps (W)40 W
Frequency (Hz)60 Hz
Power cord length (cm)0 cm
Watts (W)530 W
Construction type
TypologyChimney
Operating ModeConvertable: Ducted / Recirculating
Number of motors1
Material chimneyStainless steel
MaterialStainless steel
Installation TypeWall-mounted
Grease filter typeMultilayer cassette
Grease filter materialWashable stainless steel
Color chimneyStainless steel
Color bodyStainless steel
Diameter of air duct (mm)200 mm
Certifications
Home ConnectNo
General
Type of controlLCD, Push buttons
Maximum output recirculating air457
Operating ModeConvertable: Ducted / Recirculating
Construction typeBuilt-in
Depth of the product500 mm
