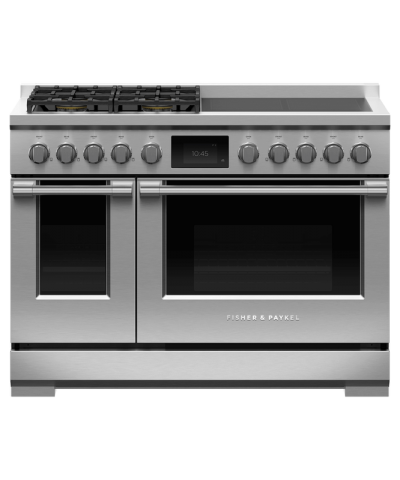

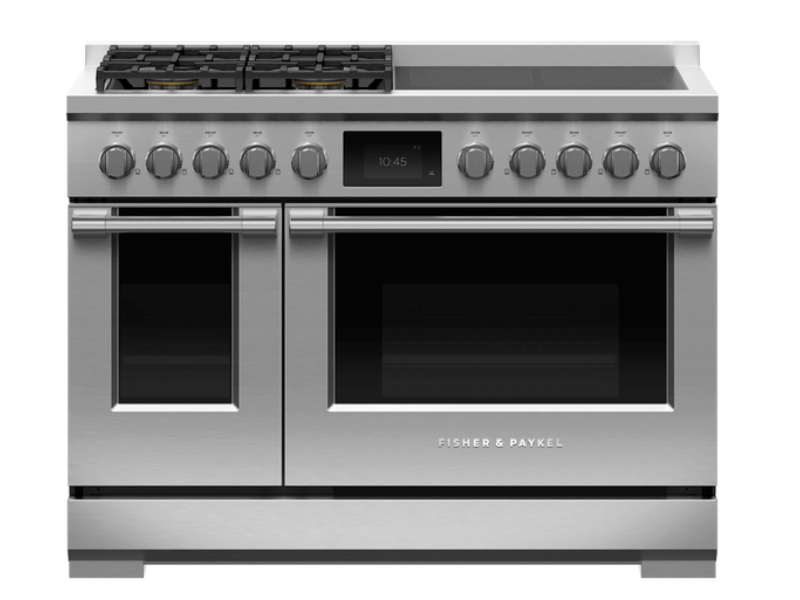

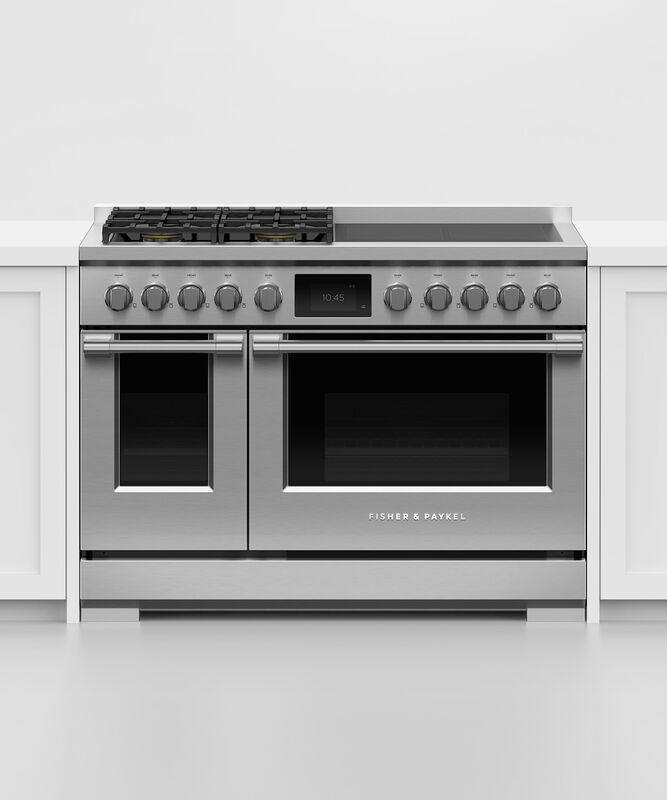

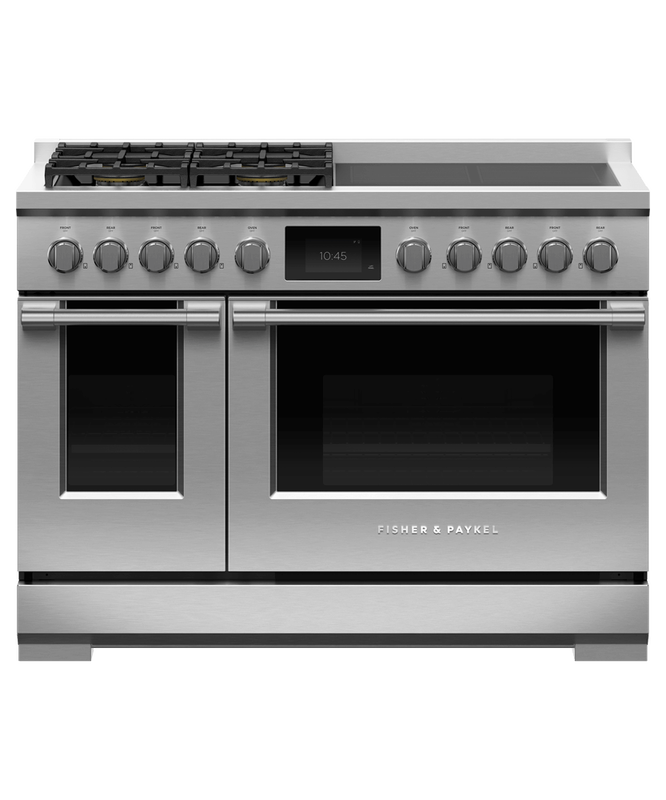

48" Fisher & Paykel Series 9 Professional Dual Fuel Range With 4 Induction Zones - RHV3-484-N

Category : Ranges
SKU : RHV3-484-N


Literature

With both induction and gas cooktops and two convection ovens, you're ready to create a feast – guided by an intuitive touchscreen.

Overview

  • Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
  • Top burner heat of 23,500 BTU, for seriously fast boiling

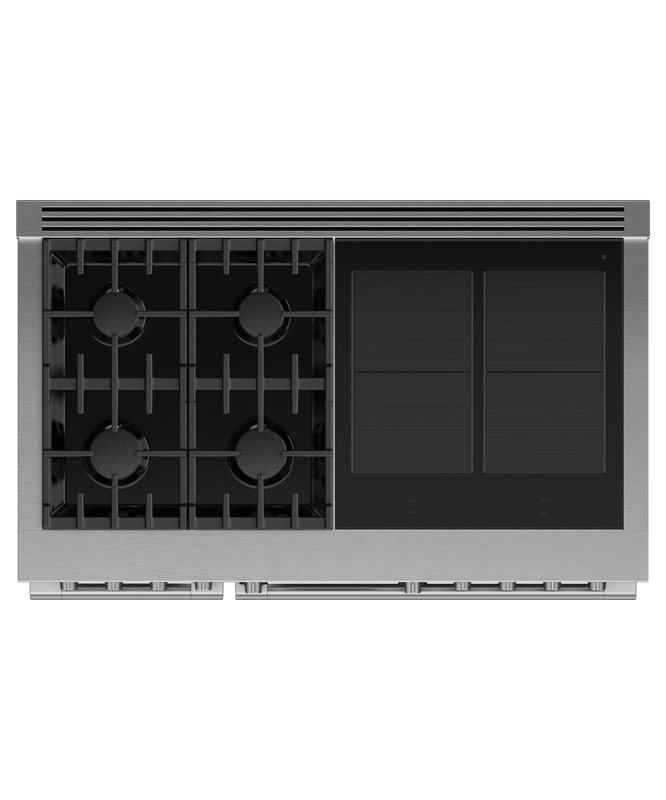

  • Four induction cooking zones, which can be paired to form two SmartZones
  • 6.9 cu ft total oven capacity across two oven cavities

Features and Benefits

Cook with confidence

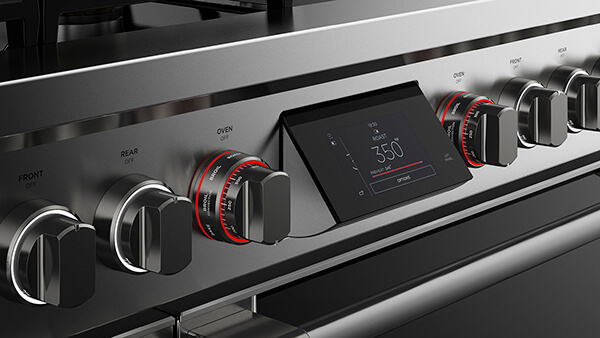

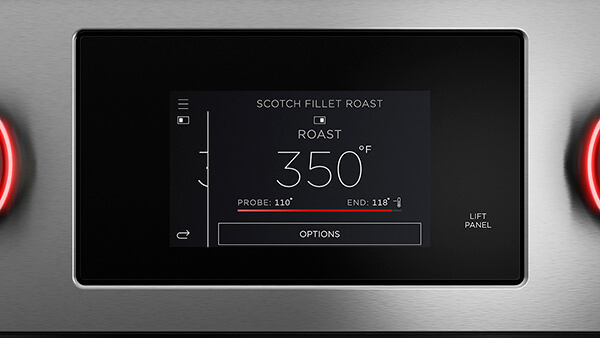

Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you've been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.

Generous capacity

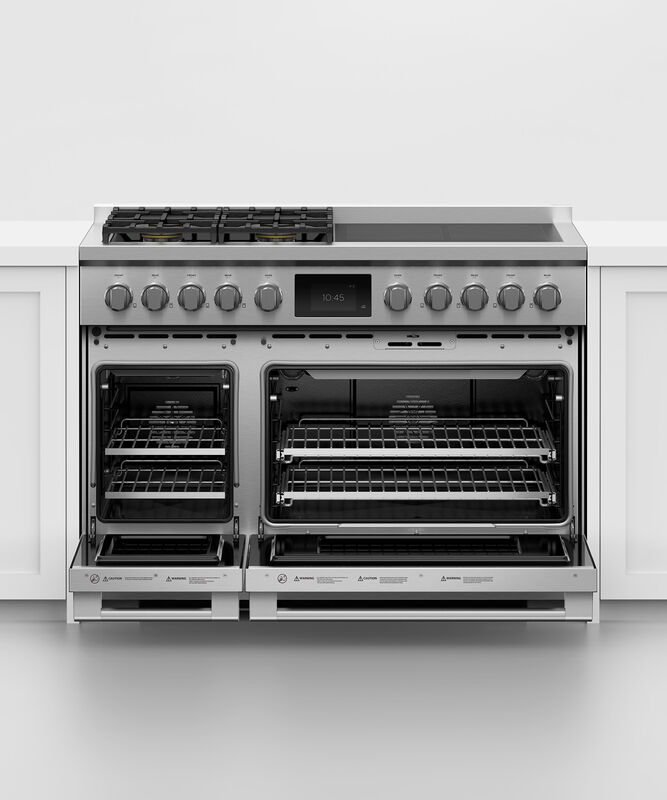

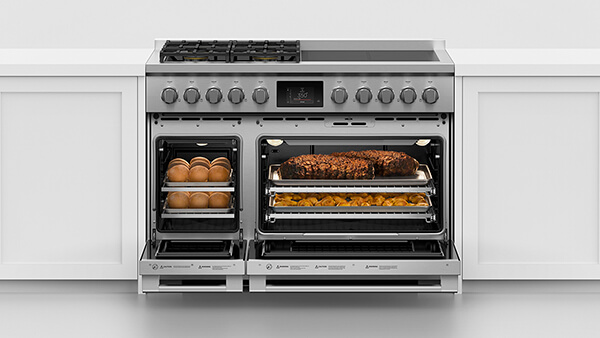

Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That's enough room for a 32 lb turkey in one oven, and your sides in the other.

Cooking flexibility

No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.

Cooktop power

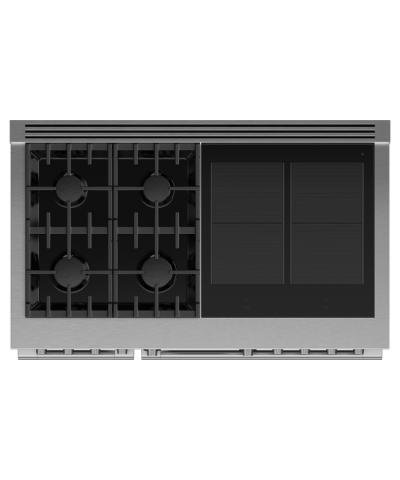

On the gas side of the cooktop, Sealed dual flow burners deliver power up to 23,500 BTU, while the induction side delivers up to 3700W. This finely tuned cooktop provides instant and immediate control from the highest heat to the most gentle simmer.

Design quality

This range has craftsmanship in every detail, with real stainless steel, high-quality glass, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.

Easy to clean

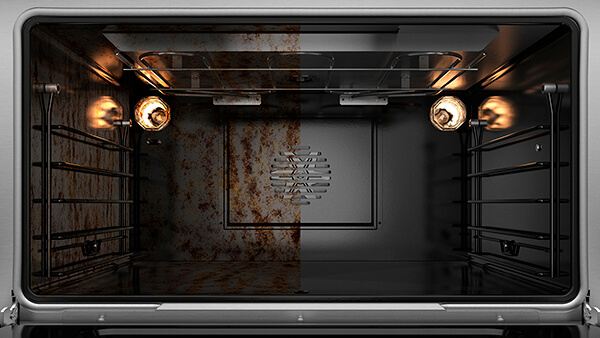

The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function. The induction zones only need a quick wipe after use to keep them clean.

Accessories
Square handle optionAH-R48
Cleaning
Pyrolytic self-cleanYes
CONTROLS
High resolution displayYes
Sabbath modeYes
Gas requirements
Fitting and pipe½ NPT, min. ⅝ Ø flex line
Supply Pressure (natural gas)6 to 9 W.C
Oven Features
Concealed elementYes
Electronic oven controlYes
Full extension telescopic sliding shelves2
Internal lightYes
Pyrolytic self-cleanYes
True convectionYes
Oven functions
Pyrolytic self-cleanYes
Oven Performance
Main Oven Shelf Positions5
Main Oven Usable Capacity3.8cu ft
Power Requirements
Supply frequency60Hz
Supply voltage120 - 240V
Product Dimensions
Depth29 1⁄8
Height35 3⁄4 - 36 3⁄4
Width47 7⁄8
Rangetop features
Gentle heat3 settings (111°F, 158°F, 201°F)
Heat settings9
Induction cooking technologyYes
PowerBoostYes
PowerBoost all zonesup to 3700W
Sealed Dual Flow Burners™4
Sealed range topYes
Simmer on all burners140°F
SmartZone2
Vent trim includedFlat vent trim
Zone bridgingYes
Rangetop Performance
Left front zone rating2100W/37000W
Left rear zone rating2100W/37000W
Max burner power23500BTU
Power back left18500BTU
Power back right18500BTU
Power front left23500BTU
Power front right18500BTU
PowerBoost all zonesup to 3700W
Right front zone rating2100W/37000W
Right rear zone rating2100W/37000W
Total cooktop power79000BTU
Safety
Pan detection systemYes
Safety time outYes
Surface hot indicatorsYes
Warranty
Parts and laborLimited 2 Years Parts & Labor
