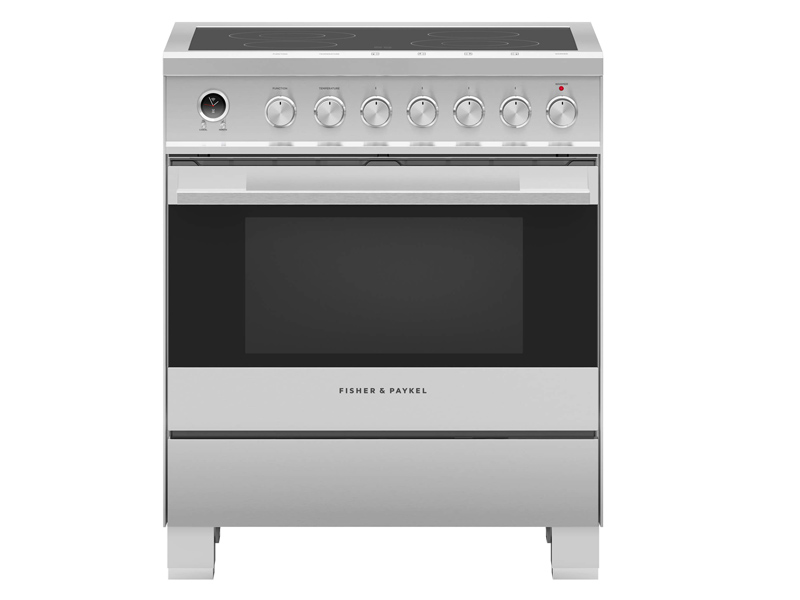

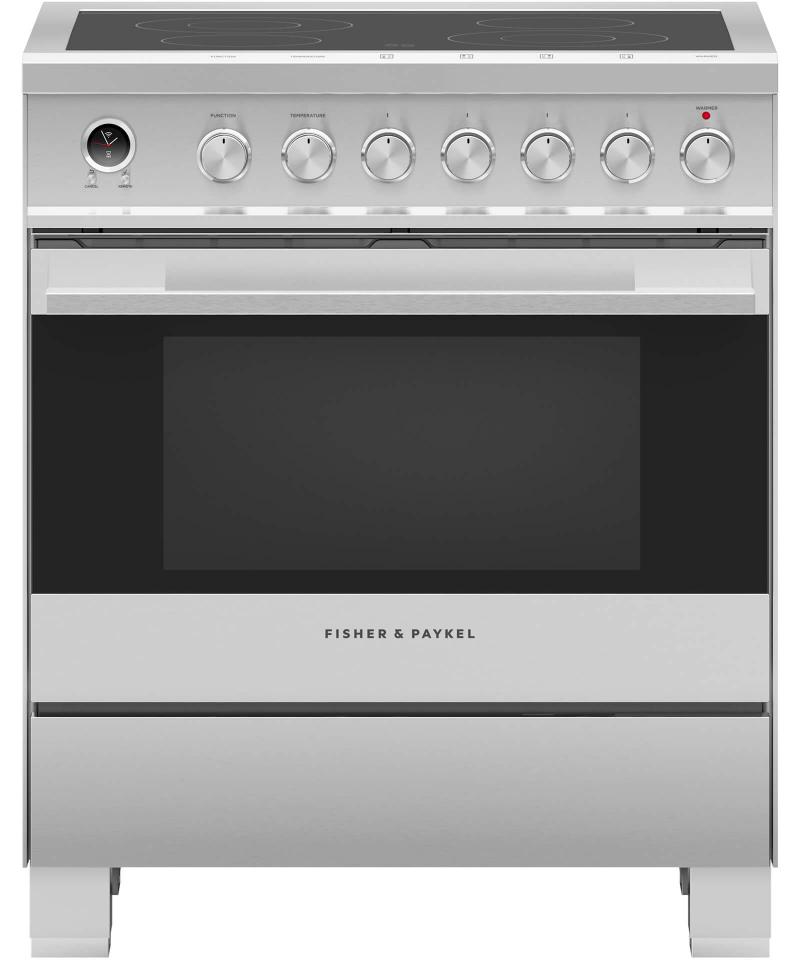

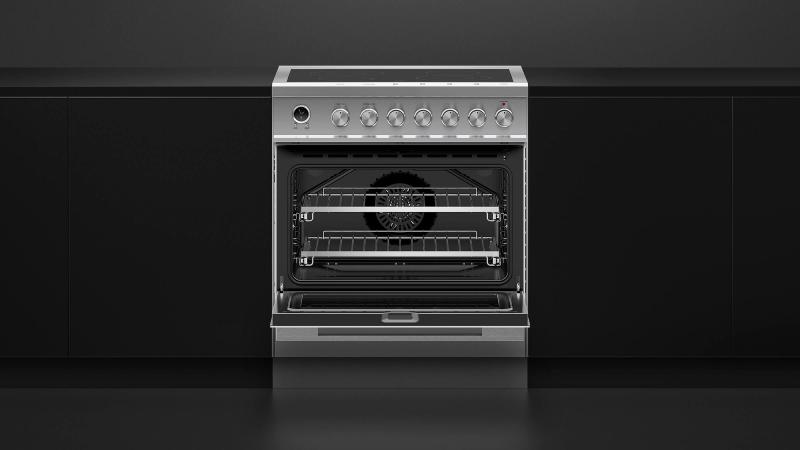

A refined, minimalist style with attention to the smallest details. High performance cooking technology with multiple cooking functions.

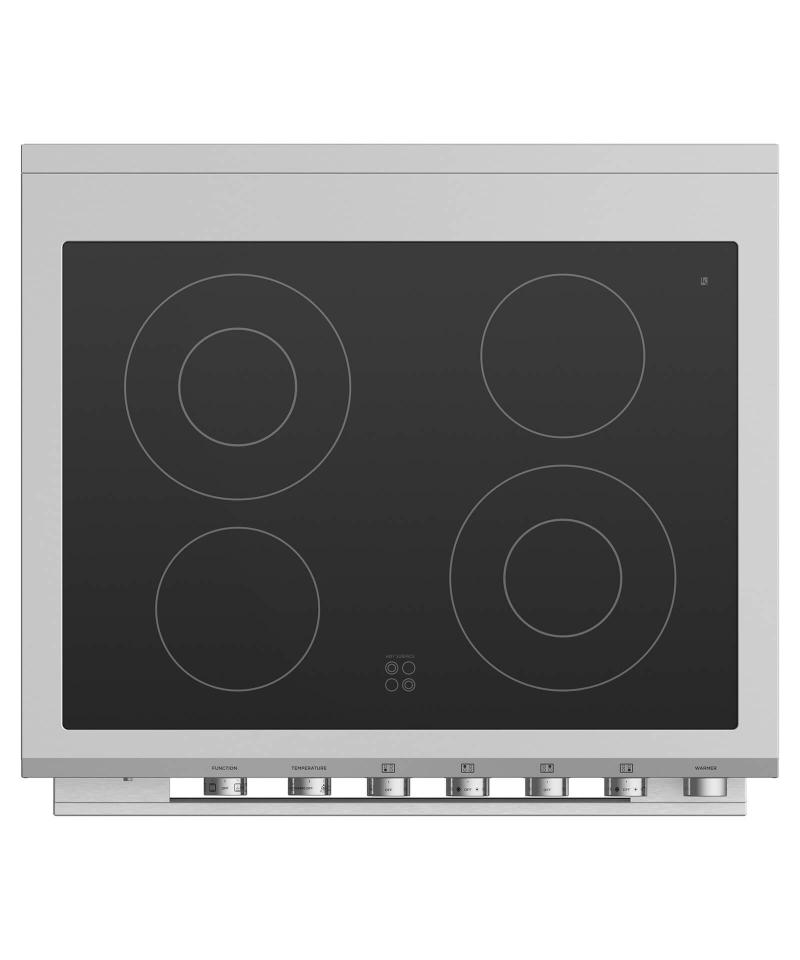

- Efficient ceramic cooktop with four elements
- Convection oven with 3.5 cu. ft total capacity
- Nine oven functions including Aero Bake
- Safety features include triple-glazed CoolTouch door, and fully extending sliding shelves
- Self-cleaning with heat-proof shelf runners
- Warmer drawer
Cooking flexibility
Acccurate, electronically-controlled oven heat, ensures a great result every time with 9 functions and pre-set temperatures including bake, grill, pastry bake with pizza mode and fan forced, for a variety of cooking styles.

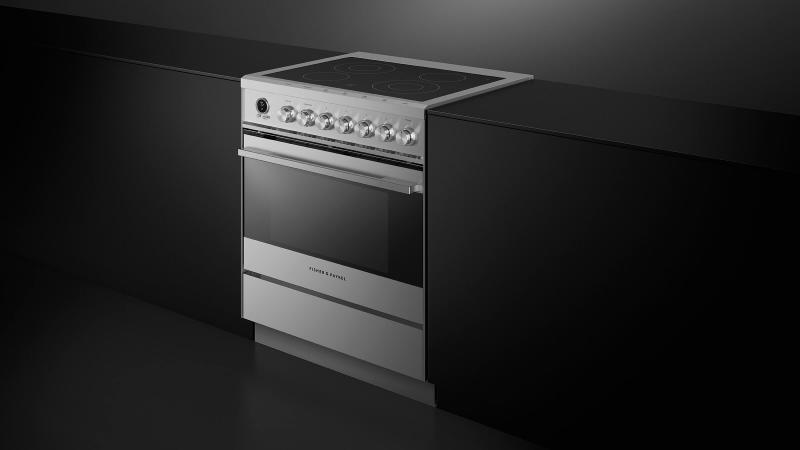

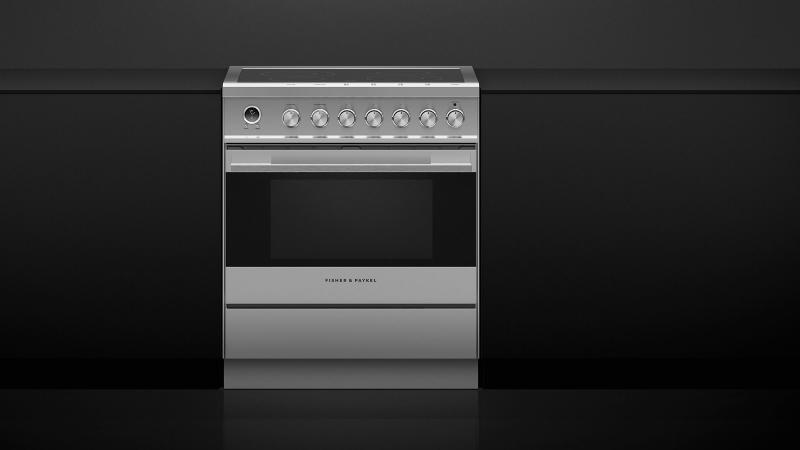

A modern legacy
A refined, minimalist style with attention to the smallest details. High-performance cooking technology offers multiple cooking functions.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, machined stainless dials and glowing halo dials all add up to an exceptional, premium range.
Large capacity oven

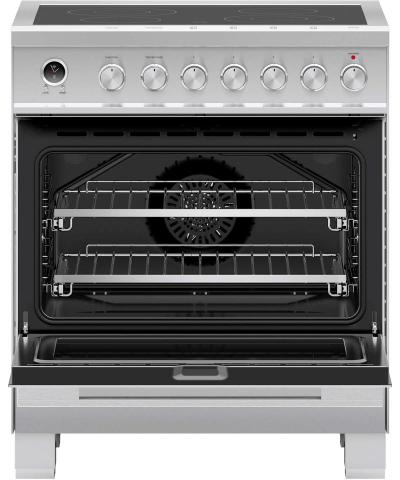

The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once.
Easy to clean

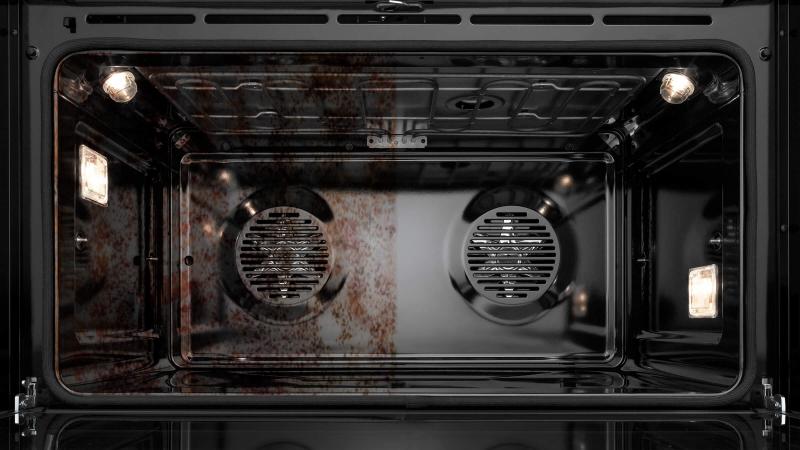

Cleaning up spills is effortless. The flat ceramic cooktop is easily wiped after use, and the self-cleaning oven breaks down food residue at a very high temperature leaving a light ash that's easily removed with a damp cloth.
Even heat

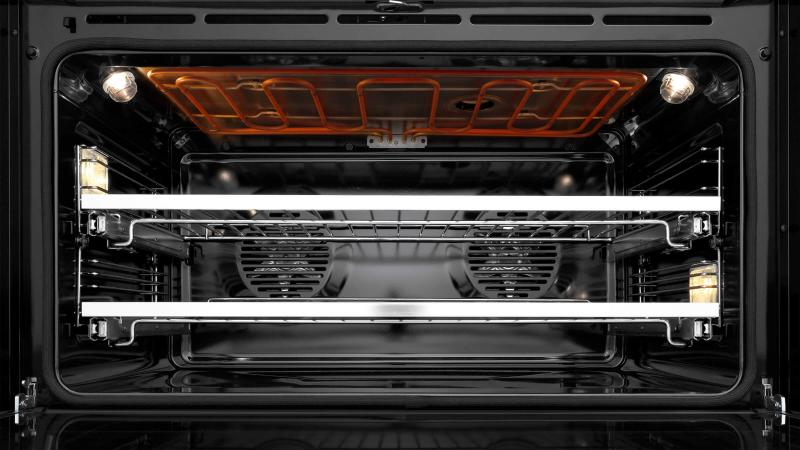

Accurate, electronically-controlled oven heat ensures a great result every time. Dishes on the top shelf turn out as perfectly as the ones on the bottom due to our AeroTech convection system that circulates air evenly throughout the entire oven.
| Details | |
|---|---|
| UPC Code | 822843813216 |
| Warranty | |
| Warranty | 2 years |
| Zone ratings | |
| Left front | 1200W |
| Left rear | 2100W |
| Right front | 2100W |
| Right rear | 1200W |
| Cooktop Features | |
| Dual element | Yes |
| HiLight high speed ribbon elements | Yes |
| Oven Features | |
| AeroTech technology | Yes |
| Automatic rapid pre-heat | Yes |
| Concealed element | Yes |
| Electronic oven control | Yes |
| Full extension telescopic sliding shelves | 2 sets (part 578776) |
| Internal light | 2 x 25W halogen (rear) |
| Pyrolytic-proof shelf runners | Yes |
| Self cleaning | Yes |
| Soft open/close door | Yes |
| True Convection | Yes |
| Warming drawer | Yes |
| Installation cutout dimensions | |
| Depth | 25 1/4 |
| Width | 30 |
| Cooktop Performance | |
| Number of elements | 4 |
| Oven Performance | |
| Broil | 4050W |
| CoolTouch door | Triple glazed |
| Shelf positions | 7 |
| Total oven capacity | 3.5cu ft |
| Warming drawer | 220W |
| Oven functions | |
| Aero Bake | Yes |
| Aero Broil | Yes |
| Aero Pastry with Pizza mode | Yes |
| Bake | Yes |
| Maxi Broil | Yes |
| Number of Functions | 9 |
| Rapid proof | Yes |
| Roast | Yes |
| Self-clean | Yes |
| True Aero | Yes |
| Cleaning | |
| Acid resistant graphite enamel | Yes |
| Drop down grill element | Yes |
| Flat easy clean glass surface | Yes |
| Pyrolytic self-clean | Yes |
| Pyrolytic-proof shelf runners | Yes |
| Removable oven door/s | Yes |
| Removable shelf runners | Yes |
| Safety | |
| Advanced cooling system | Yes |
| Anti-tilt bracket | Yes |
| Balanced oven door | Yes |
| Catalytic venting system | Yes |
| CoolTouch door | Yes |
| Full extension telescopic sliding shelves | Yes |
| Individual hot surface indicators | Yes |
| Non-tip shelves | Yes |
| Spill containment | 1/8 gallon |
| CONTROLS | |
| Audio feedback | Yes |
| Automatic cooking/minute timer | Yes |
| Automatic pre-set temperatures | Yes |
| Celsius/Fahrenheit temperature | Yes |
| Electronic clock | Yes |
| High resolution display | Yes |
| Interior light | Yes |
| Laser etched graphics | Yes |
| Precise electronic temperature control | Yes |
| Sabbath mode | Yes |
| Toughened fused glass graphics | Yes |
| Turned stainless steel clock buttons | Yes |
| Turned stainless steel clock crown (dial) | Yes |
| Turned stainless steel dials with illuminated halos | Yes |
| Power Requirements | |
| AMP draw | 50A |
| Supply frequency | 60Hz |
| Supply voltage | 208 - 240V |
| Accessories | |
| 2-pc grill system (Broil pan & Grill rack) | Yes |
| Broil pan | Yes |
| Full extension sliding shelves | 2 sets (part 578776) |
| Grill rack | Yes |
| Hob rear trim (optional) | 3 1/8 (part 81656) |
| Kick strip, stainless steel (optional) | Part 81660 |
| Pyrolytic-proof shelf runners | 1 set |
| Style And Series | |
| Product Style | Contemporary |
