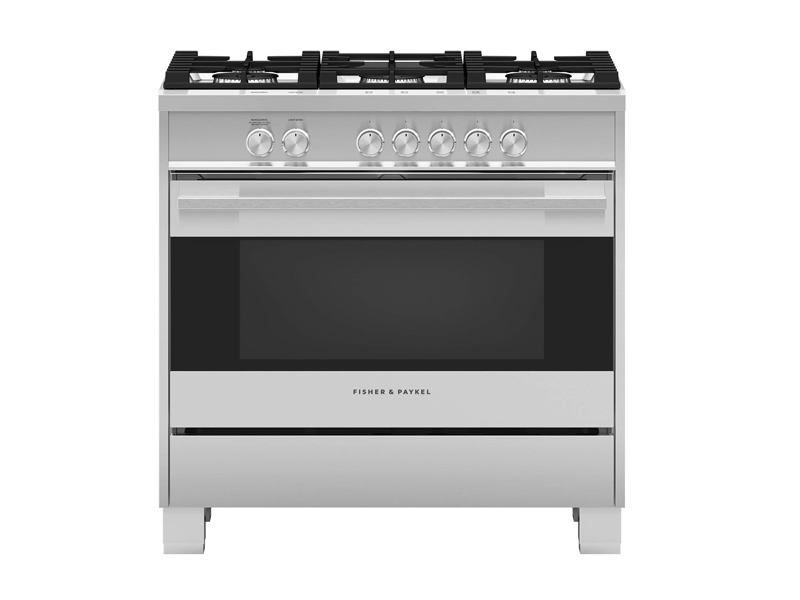

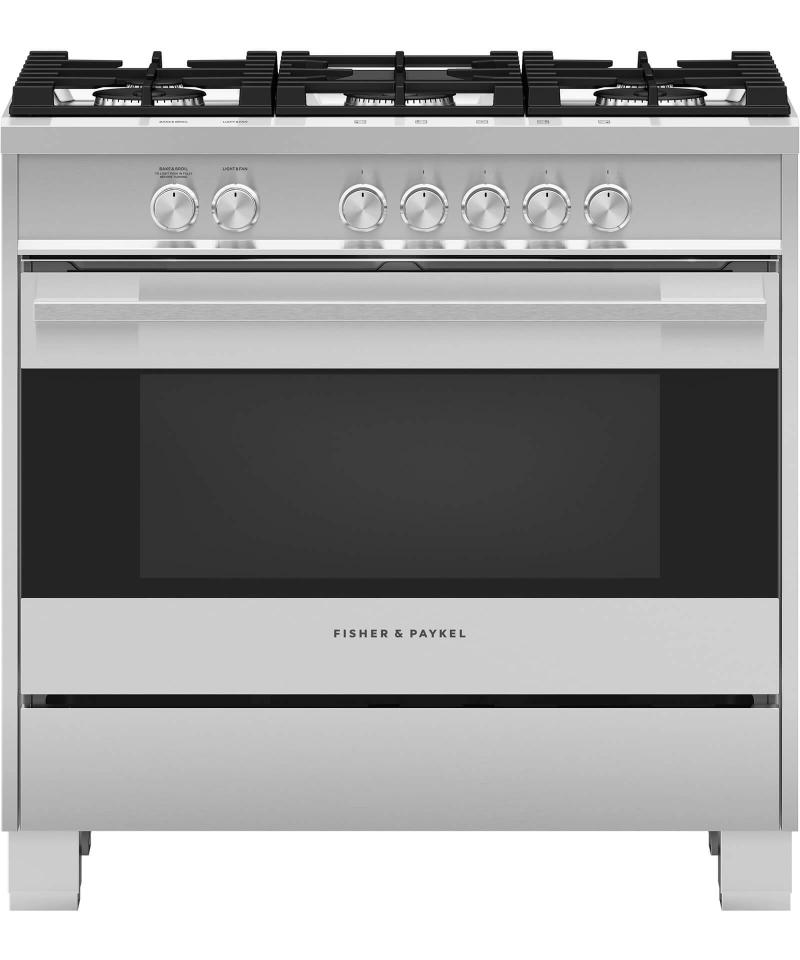

36" Fisher & paykel Freestanding Gas Range - OR36SDG4X1

Category : Ranges
SKU : OR36SDG4X1


Literature



This 36 Fisher & Paykel freestanding range gives you the large oven capacity to cook multiple dishes. Its instant heat and precise control add to the contemporary stylish stainless steel finish.

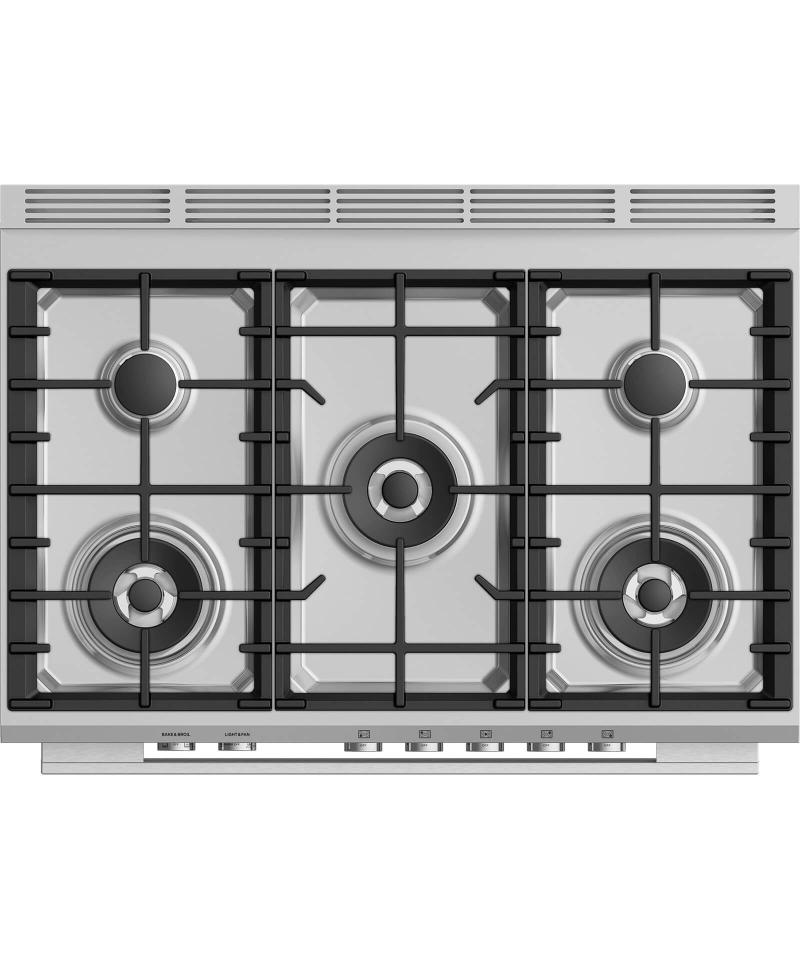

  • Gas cooktop with five burners
  • Gas oven with 4.9 cu ft total capacity
  • 3 oven functions
  • Handy storage drawer

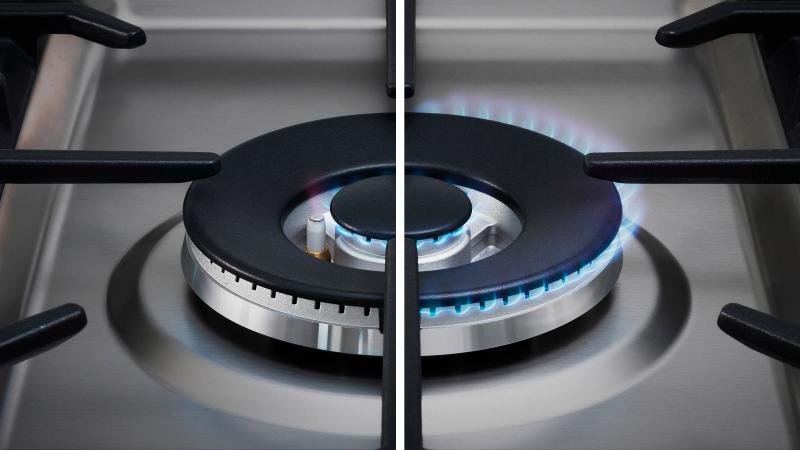

Performance power

Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.

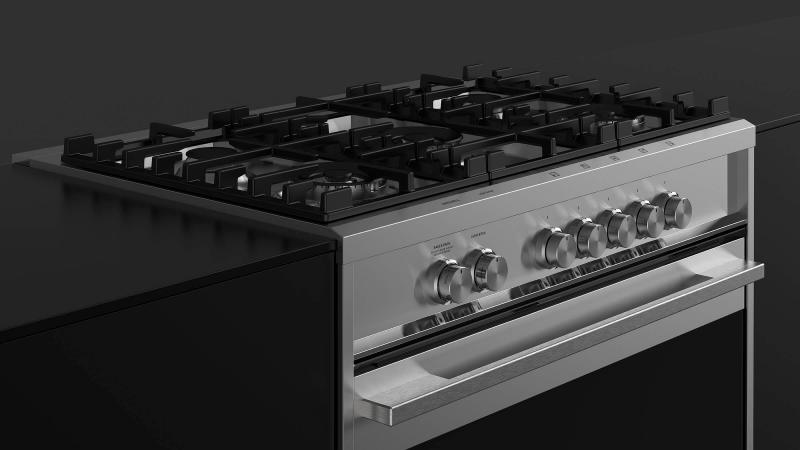

Design quality

This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door, rounded hob rail and glowing halo dials.

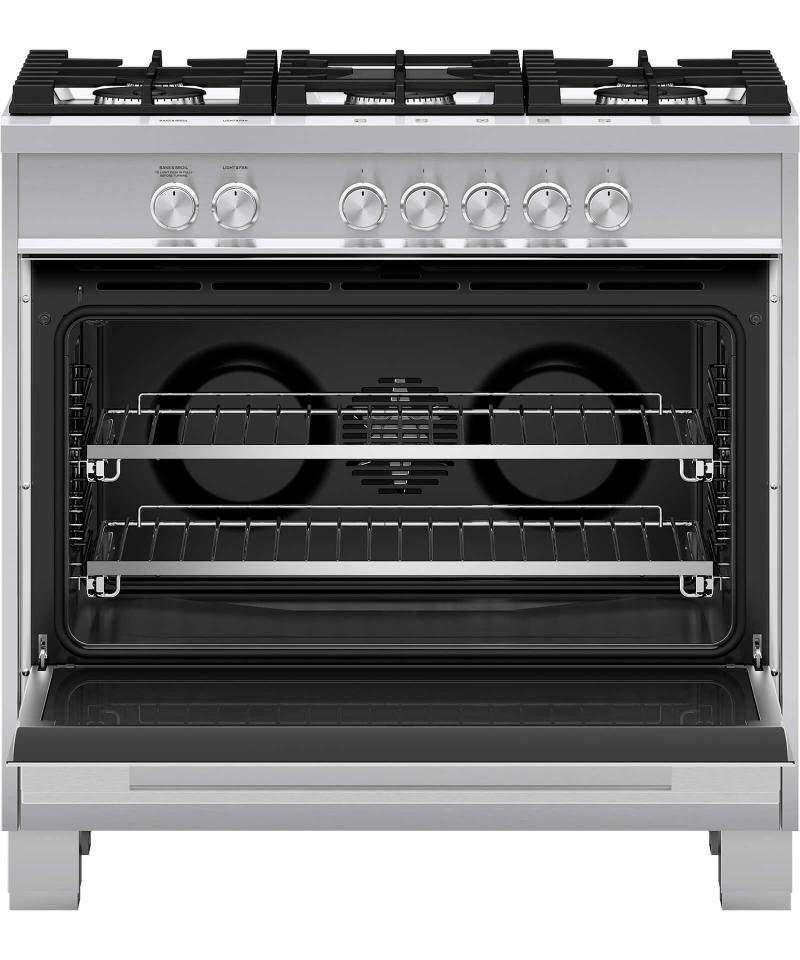

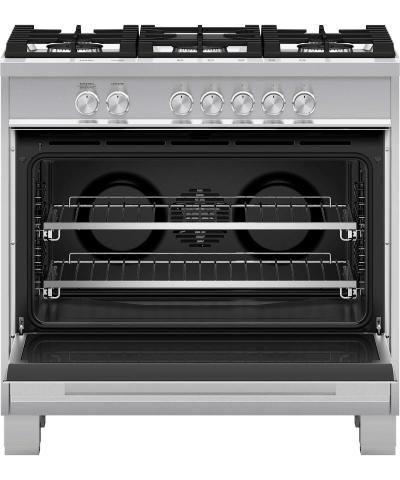

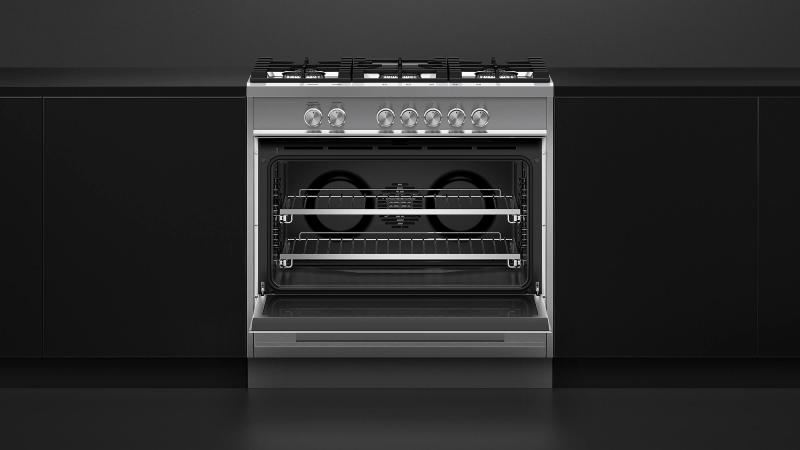

Large capacity

The large 4.9 cu ft capacity for this range gives you plenty of space to cook multiple dishes at the same time.

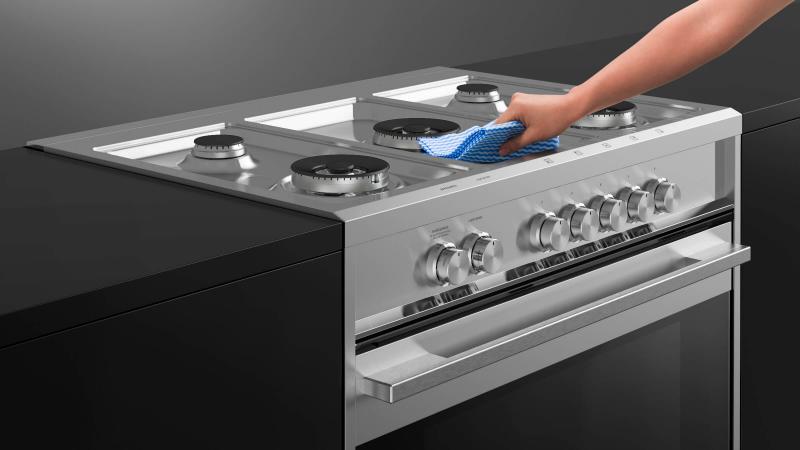

Easy cleaning

With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

Details
UPC Code822843813001
Warranty
Warranty2 years
Cooktop Features
Dishwasher safe trivetsYes
Gas Cooktop- Sealed range topYes
Hob rear trim0 7/8
LPG/Natural gas compatibleYes
Oven Features
Concealed elementYes
Electronic ignitionYes
Full extension telescopic sliding shelves2 sets (part 578744)
Internal light4 x 25W halogen (2 side & 2 top)
Soft open/close doorYes
Storage drawerYes
True ConvectionYes
Installation cutout dimensions
Depth25 1/4
Width36
Cooktop Performance
Dual wok burner inner / outer (LPG)1000 - 18000BTU
Dual wok burner inner / outer (natural gas)1000 - 18000BTU
Max burner power18000BTU
Number of burners5
Semi-rapid burner (LPG) x21500 - 8000BTU
Semi-rapid burner (natural gas) x21500 - 8000BTU
Total cooktop power62000BTU
Triple ring wok burner (LPG) x26100 - 14000BTU
Triple ring wok burner (natural gas) x26100 - 14000BTU
Oven Performance
Bake17000BTU
Broil13000BTU
CoolTouch doorQuadruple glazed
Shelf positions7
Total oven capacity4.9cu ft
Oven functions
Aero BakeYes
BakeYes
Maxi BroilYes
Number of Functions3
Cleaning
Acid resistant graphite enamelYes
Dishwasher safe trivetsYes
Removable oven door/sYes
Removable shelf runnersYes
Safety
Advanced cooling systemYes
Anti-tilt bracketYes
Auto re-ignition systemYes
Balanced oven doorYes
CoolTouch doorYes
Full extension telescopic sliding shelvesYes
Non-tip shelvesYes
Spill containment5/8 gallon
CONTROLS
Interior lightYes
Laser etched graphicsYes
Power Requirements
AMP draw15A
Supply frequency60Hz
Supply voltage120V
Gas requirements
Supply Pressure (LPG)11 W.C.P
Supply Pressure (natural gas)4 W.C.P
Accessories
2-pc grill system (Broil pan & Grill rack)Yes
Broil panYes
Chromed shelf runners1 set
Full extension sliding shelves2 sets (part 578744)
Grill rackYes
Hob rear trim (optional)3 1/8 (part 81654)
Kick strip, stainless steel (optional)Part 81659
Small pot support1 (part 533981 cast)
Wok stand1 (part 534678)
Style And Series
Product StyleContemporary
