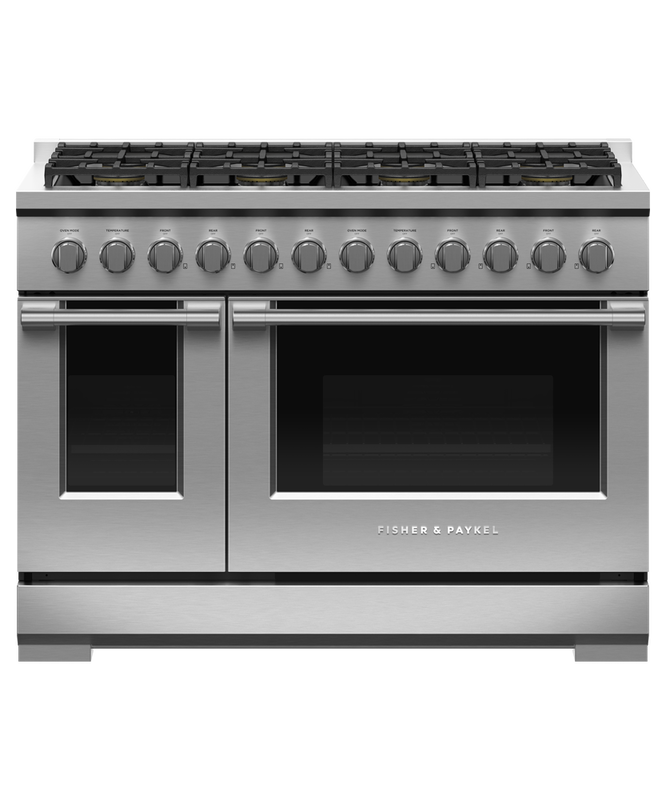

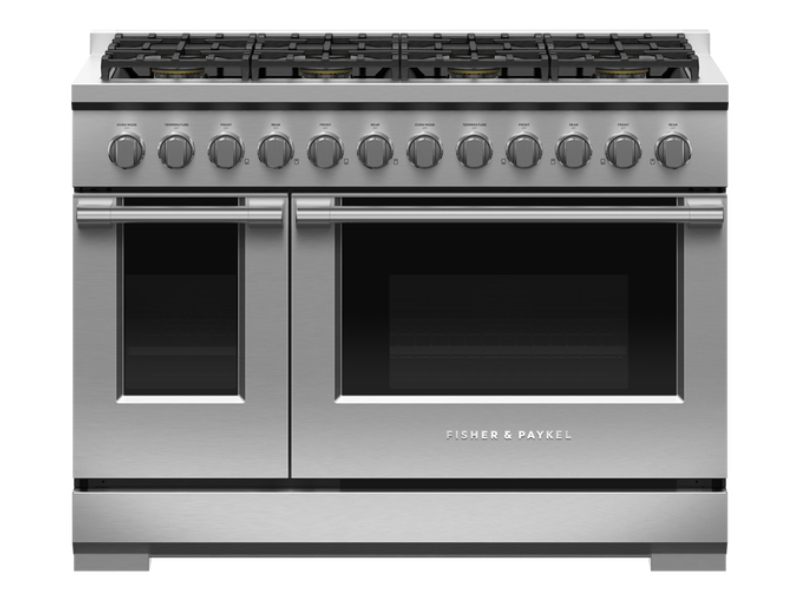

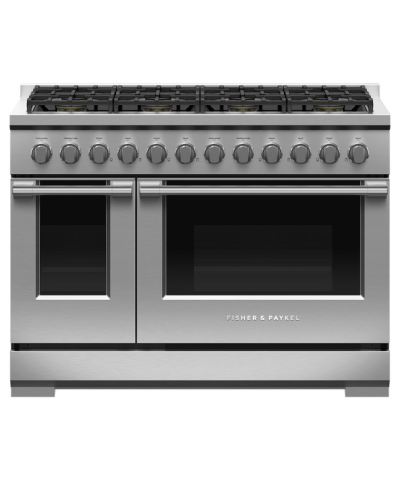

48" Fisher & Paykel Series 7 Professional Natural Gas Range With 8 Burners - RGV3-488-N

Category : Ranges
SKU : RGV3-488-N


Literature

Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.

Overview

  • Top burner heat of 23,500 BTU, for seriously fast boiling

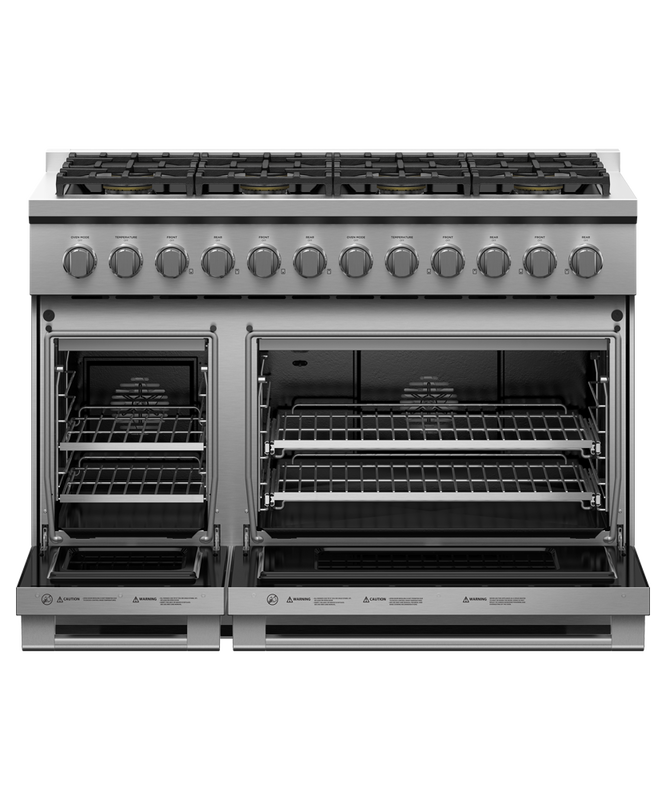

  • Expansive 7.7 cu ft total oven capacity across two oven cavities
  • Non-tip full-extension shelves in main cavitiy for safe removal of hot dishes
  • Made from quality materials and real stainless steel

Features and Benefits

Generous capacity

Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey, or to cook several dishes at once.

Cooktop power

Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

Cooking flexibility

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.

Design quality

This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.

Easy to clean

Cleaning up spills is effortless with the continuous, porcelain basepan. Your cooktop simply needs a quick wipe to keep it looking good as new.

Total control

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.

Accessories
Square handle optionAH-R48
Capacity
Shelf positions5
Total capacity7.7
Usable capacity5.6
Cleaning
Easy clean porcelain basepanYes
CONTROLS
Star K CertificationYes
Titanium coated, illuminated metal dialsYes
Gas requirements
Fitting and pipe NPT, min. ⅝ ∅ flex line
Gas requirementsNG
Supply Pressure (natural gas)6 to 9 W.C
Oven Features
Broil panYes
Electronic oven controlYes
Full extension telescopic sliding shelves3
Internal lightYes
Oven functions
BakeYes
BroilYes
Convection bakeYes
Slow cookYes
Oven Performance
BakeYes
Bake power28,000
Broil power18,500
Main Oven Shelf Positions5
Main Oven Usable Capacity3.9cu ft
Power Requirements
Amperage15
Supply frequency60
Supply voltage120
Product Dimensions
Depth29 1⁄8
Height35 3⁄4 - 36 3⁄4
Width47 7⁄8
Rangetop features
Sealed Dual Flow Burners™8
Sealed range topYes
Simmer on all burners140°F
Vent trim includedFlat vent trim
Rangetop Performance
Back centre18,500
Front centre18,500
Left front zone rating23,500
Left rear zone rating18,500
Max burner power23,500
Right front zone rating23,500
Right rear zone rating18,500
Total cooktop power158,000
Recommended back guards and ventilation
Combustible situationBGRV3-3048H
Non combustible situationBGRV2-3048 / BGRV2-1248
Recommended hoodHCB48-12_N (48 Professional Range Hood, Dual Blower)
Safety
ADA compliantYes
Full extension telescopic sliding shelves3
Warranty
Parts and labour2 years
