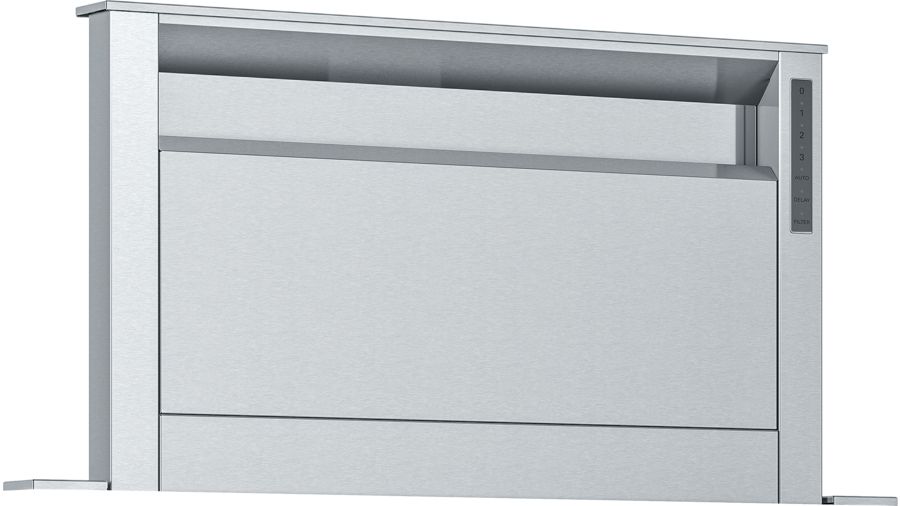

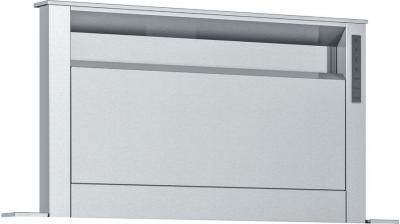

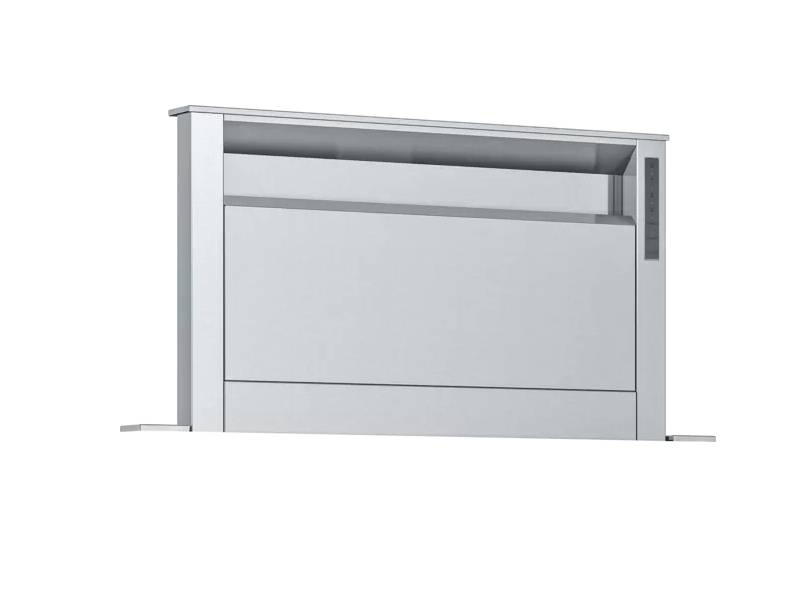

30" Thermador Masterpiece Series Downdraft Ventilation in Stainless Steel - UCVM30XS

Category : Ventilation
SKU : UCVM30XS


Literature

These subtle units retract out of sight when not in use, keeping sightlines clear. At a push of a button, downdraft rises 15" tall

  • 15-inch telescopic design rises to capture heat, smoke, grease, and steam
  • Flexible discharge design gives 5 configurations to maximize space
  • Remote or inline blowers to reduce noise, integral for top performance
  • Auto function senses heat from the cooking surface and adjusts the fan speeds
  • Recirculation kit available, use with induction/electric cooktops only

Technical Specifications

  • 30" Downdraft - Masterpiece Series

Performance

  • Flexible discharge design gives 6 configurations to maximize space
  • Designed to create the ultimate cooking system with Thermador cooktops
  • Downdraft rises 15" to capture heat, grease and steam from pots
  • Powerfully Quiet and efficient in operation at 1.5 sones on low speed
  • Engineered to allow for flexibility to exhaust at sides, front or rear
  • Sleek, removeable front filter panel that acts as a splatter shield
  • Grease mesh filters are dishwasher safe and easy to clean
  • Select the precise fan speed needed with four different settings
  • Automatic mode detects temperatures to adjust fan speed automatically
  • 10-min delay shut-off ensure lingering odors are whisked away
  • Check filter reminder light illuminates after 40 hours of operation
  • Blowers sold separately and required to complete installation
  • Recirculation kit available, use with induction/electric cooktops only
  • Replacement charcoal filters for recirculation kit sold separately
  • Gas cooktop seal kit required to use with gas cooktops, sold separate

Design

  • Design match to Thermador Masterpiece Series cooktops
  • Suitable for wall or island applications
  • Authentic, brushed stainless steel finish
  • Sleek, smooth touch control make cleaning easy with a damp cloth
  • Designed to allow for flexibility to exhaust at sides, front or rear

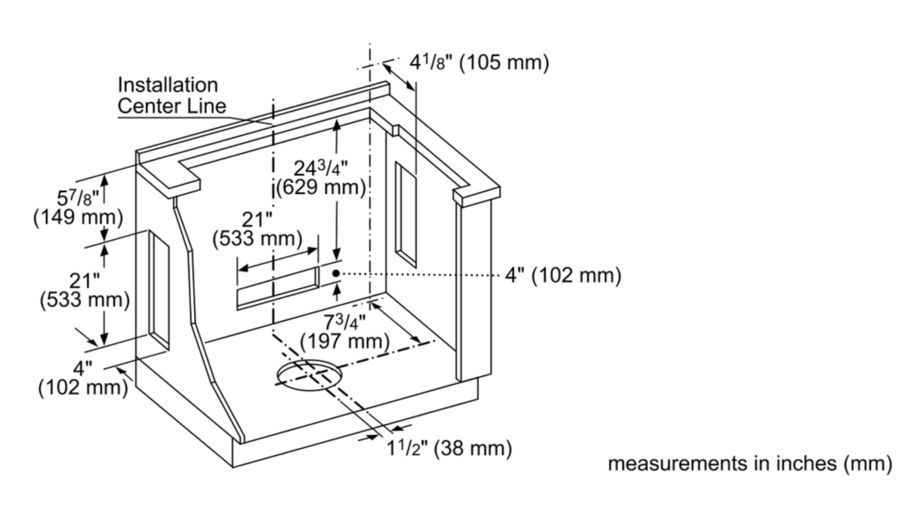

  • Some blower positions may need deeper cabinets. See installation guide
  • Additional accessories may be required for installation, see manual
General
Depth of the product70 mm
Installation typeBuilt-in
Air circulationConvertible
Type of controlRotary switches
Construction type
Color bodyStainless steel
Grease filter materialWashable aluminium
Grease filter typeMultilayer cassette
Installation TypeBuilt-in
MaterialStainless steel
Motor locationExternal motor
Number of motors0
Air circulationConvertible
Connection
Power cord length (cm)150 cm
Frequency (Hz)60 Hz
Volts (V)120 V
