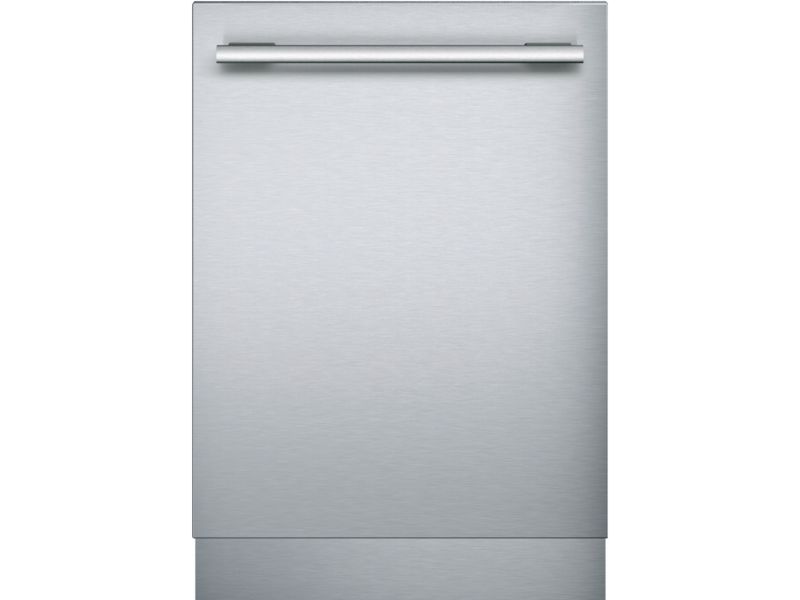

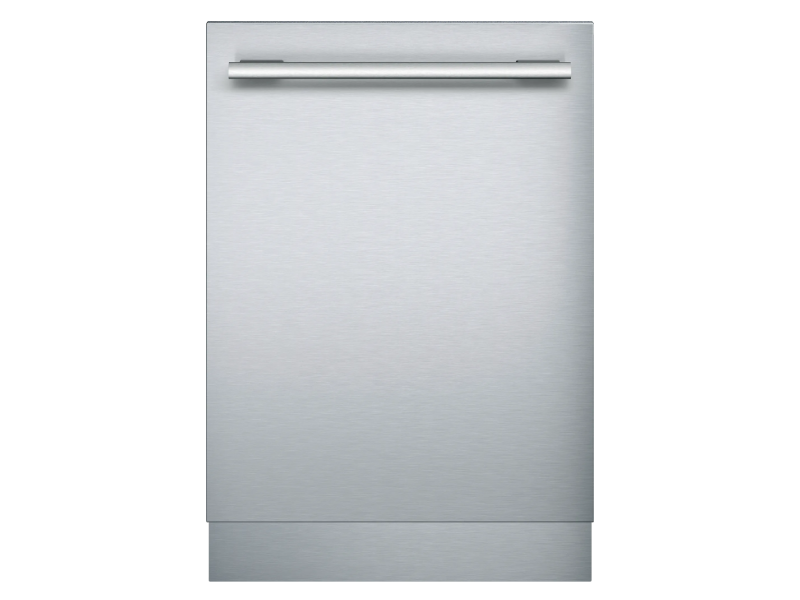

24" Thermador Dishwasher in Stainless steel - DWHD770CFM

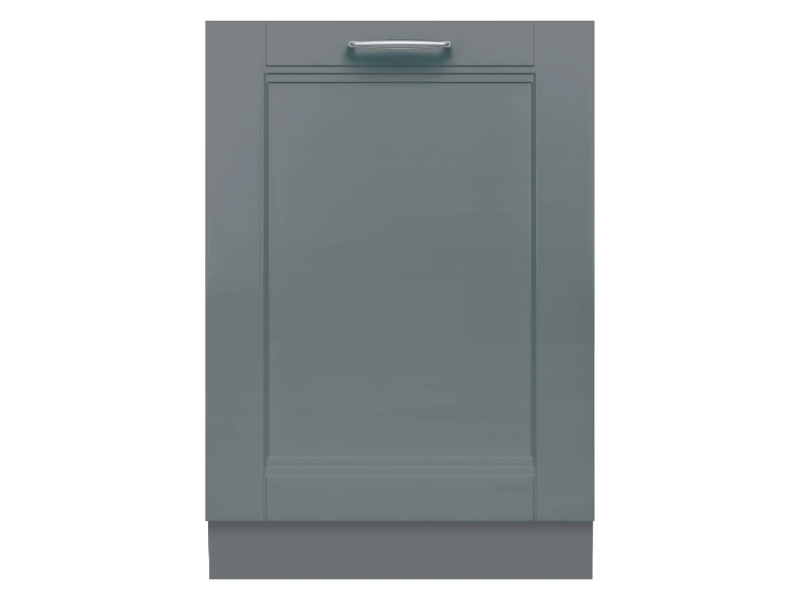

24" Thermador Dishwasher Custom in Panel Ready - DWHD770CPR

24" Thermador Dishwasher in Stainless steel - DWHD770CFM

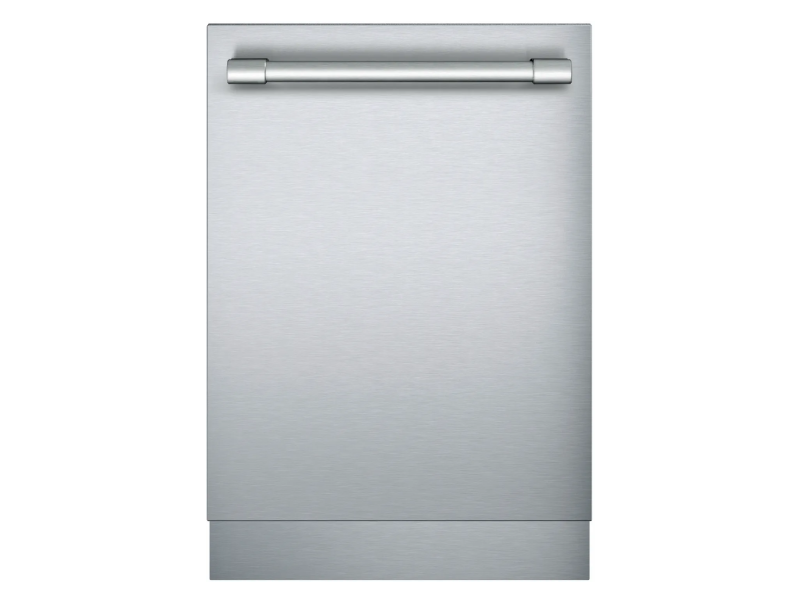

24" Thermador Dishwasher in Stainless steel - DWHD770CFP

Category : Dishwashers
SKU : DWHD770CFM
SKU: DWHD770CPR
SKU: DWHD770CFM
SKU: DWHD770CFP


Literature

Highlights

Stainless Steel Panel with Masterpiece Handle

Sleek brushed stainless steel handles with a modern design.



StarDry with Zeolite

Introducing StarDry with Zeolite, and exclusive Thermador drying solution. Without the use of chemicals, and with no need for replenishment, our StarDry with Zeolite can even dry containers with hard-to-reach crevices. No one dries better.



Star Glow illuminates your dishwasher with any color of your choice when paired with Home Connect

A Thermador exclusive, Star Glow illuminates the inside of the dishwasher in a variety of colors, so you can set the mood that matches the occasion via the Thermador Connected Experience by Home Connect



WiFi-Enabled: monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa

WiFi-Enabled: monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa


  • StarDry : Uses Zeolite technology to absorb moisture, and dry containers with hard-to-reach crevices. No other dishwasher dries better.
  • Powerfully Quiet: enjoy a signature cleaning cycle at 42 dBA, perfect for after-dinner conversation
  • Star Glow illuminates your dishwasher with any color of your choice when paired with Home Connect Close
  • WiFi-Enabled: monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa
  • Time remaining PowerBeam: shines a countdown of the remaining time of the cycle on the floor
Safety
ChildLockNo
Construction type
Concealed heating elementYes
Installation TypeBuilt-under
Removable topNo
Tub materialStainless steel
Water softenerYes
Height of the product860 mm
Drying systemInherent heat, Zeolith
Panel readyNot possible
Connection
Plug typeNema5-15P
Length outlet hose230 cm
Fuse protection12 A
Power cord length170 cm
Watts1,440 W
Consumption values
Maximum number of place settings (EU 2017/1369)16
Maximum temperature for water intake (°C)60
Water consumption, programme 7 (l)4.1
Water consumption, programme 6 (l)10.5
Water consumption, programme 5 (l)14.3
Water consumption, programme 4 (l)9-14.6
Water consumption, programme 3 (l)8.8-21
Water consumption, programme 2 (l)12.9-24.1
Water consumption, programme 1 (l)18.6-24.2
Energy consumption, programme6 (kWh)0.52
Safety
aquaStopNo
Programmes
Temperature, programme 5 (°C)50
Temperature, programme 6 (°C)45
Consumption values
Energy consumption, programme5 (kWh)0.9
Programmes
Temperature, programme 4 (°C)45-50
Temperature, programme 3 (°C)45-58
Temperature, programme 2 (°C)53-60
Consumption values
Energy consumption, programme4 (kWh)0.5-0.57
Energy consumption, programme3 (kWh)0.82-0.87
Energy consumption, programme2 (kWh)0.74-0.89
Glass protectionYes
Energy consumption, programme1 (kWh)1.15-1.24
Programmes
Temperature, programme 1 (°C)66-71
Programme duration, programme7 (min.)9
Programme duration, programme6 (min.)30
Programme duration, programme5 (min.)60
Programme duration, programme4 (min.)75-85
Programme duration, programme3 (min.)130-135
Programme duration, programme2 (min.)105-129
Programme duration, programme1 (min.)110-135
Program 7Pre-Rinse
Program 6Quick S
Program 5Quick L
Program 4Delicate
Program 3Economy
Program 2Auto
Program 1Intensive
List of programmesAuto 53-60
Status indicatorEnd of program audible, rem. time proj. White, sanitized LED US, water inlet
Size and Weight
Net weight46.7 kg
Height of removable worktop0 mm
Depth for installation610 mm
Maximum width for installation618 mm
Minimum width for installation610 mm
Maximum height for installation890 mm
Depth with open door 90 degree1,231 mm
Overall appliance dimensions (HxWxD)860 x 598 x 602 mm
Construction type
Width of the product598 mm
Installation typeBuilt-in
Color / Control PanelGrey
Color / Material housingLacquered
General
Accessories Partsbaking-sheet spray head grey
3rd RackMyWay Rack
Drying systemInherent heat, Zeolith
aquaStopNo
Cycle Optionshalf load, HygienePlus, Intensive Zone, Remote Start, VarioSpeed, Zeo Dry
List of programmesAuto 53-60
Maximum number of place settings (EU 2017/1369)16
Adjustable plinthNo
Panel readyNot possible
Removable topNo
Color / Control PanelGrey
ColorStainless steel
Installation TypeBuilt-under
Installation typeBuilt-in
Technical Overview
ColorStainless steel
Overall appliance dimensions (HxWxD)860 x 598 x 602 mm
