30" Whirlpool Gas Cooktop with 2-in-1 Hinged Grate to Griddle - WCGK7530PS
You may also like
Top Features

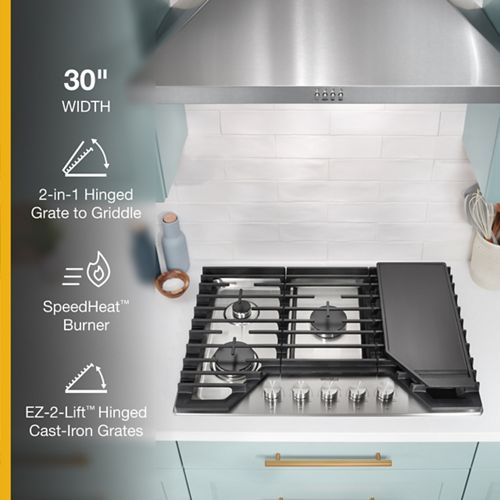

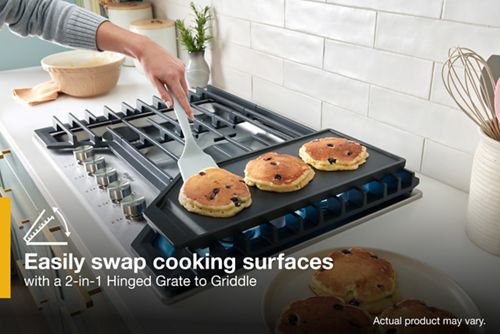

2-in-1 Hinged Grate to Griddle
Enjoy more mealtime possibilities by easily swapping between cooking surfaces with our industry-first interlocking 2-in-1 Hinged Grate to Griddle. Use the griddle for breakfast, then move it out of the way to use the grate for dinner. The hinged design also allows for easy cleaning.
SpeedHeat™ Burner
Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
Cooking Flexibility
Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
Additional Features

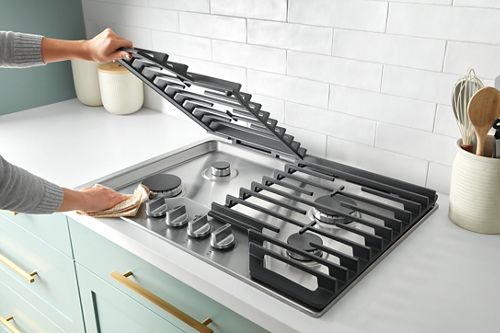

EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
Fifth Burner
Save time and cook everyone’s favorite at once with the extra Fifth Burner. With room to fit different pan sizes, you can boil water, sauté veggies and sear burgers all at the same time.
5K BTU Simmer Burner
Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
9.1K–12K BTU Multi-Purpose Burners
Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
Dishwasher-Safe Cast-Iron Grates
Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Dishwasher-Safe Knobs
Make cleanup easy by washing knobs right in the dishwasher.
Upswept SpillGuard™ Cooktop
Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
Edge-to-Edge Cast-Iron Grates
Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
Sealed Burners
Cut down on cleanup with burners that are sealed to prevent food from falling into them.
Wall Oven Compatible
Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.
ADA Compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Dimensions | |
---|---|
Depth | 21.0 " |
Width | 30.0 " |
Height | 5.13 " |
Net Weight | 63.3 lbs |
Carton Depth Inch | 25.0 " |
Carton Height Inch | 13.0 " |
Carton Width Inch | 34.69 " |
Maximum Height | 5.13 " |
Minimum Height | 4.75 " |
Cooktop Details | |
Left Front Element Burner Type | Standard |
Right Front Element Burner Type | Standard |
Left Rear Element Burner Power | 5000BTU |
Left Front Element Burner Power | 12000BTU |
Left Rear Element Burner Type | Simmer |
Number Of Cooking Element Burners | 5 |
Right Rear Element Burner Power | 9100BTU |
Center Element Burner Power | 18000BTU |
Right Front Element Burner Power | 9100BTU |
Right Rear Element Burner Type | Standard |
Cooktop Configuration | Burners with Integrated Griddle |
Cooktop Element Style | Sealed Burners |
CONTROLS | |
Control Type | Manual |
Control Location | Front |
Knob Type | Dishwasher-Safe Metal |
Configuration and Overview | |
Fuel Type | Gas |
Description | |
Cooktop Type | Traditional |
Size In | 30 |
Combinations With Oven | WOS11EM4 WOS31ES0 WOS31ES7 WOS51EC0 WOS51EC7 WOS51ES4 WOS52EM4 WOS72EC0 WOS72EC7 WOS92EC0 WOS92EC7 WOS97EC0 WOS97ES0 WOSA2EC0 WOS52ES4M WOES3027L WOES5027L WOES7027P WOES3030L WOES5030L WOES5930L WOES7030P |
Features | |
Automatic Pan Detection | No |
Digital Display | No |
Downdraft Vent | No |
Installs Over Built In Oven | Yes |
Automatic Pan Size Adjustment | Non |
LP Convertible | Yes - Kit Included |
Power Boost | No |
Power Outage Compatible | Yes |
Heating Element On Indicator Light | No |
Griddle | Yes |
Hot Surface Indicator Light | No |
Specifications | |
Country Of Origin | USA |
ELECTRICAL | |
Hz | 60 |
Amps | 15 |
Power Cord Included | Yes |
Certifications | |
UL | Yes |
ADA Compliant | Yes |
