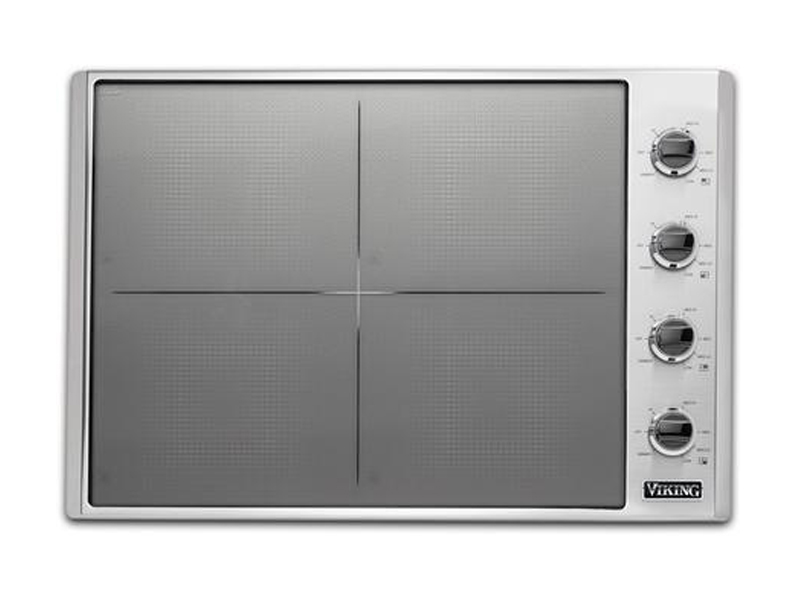

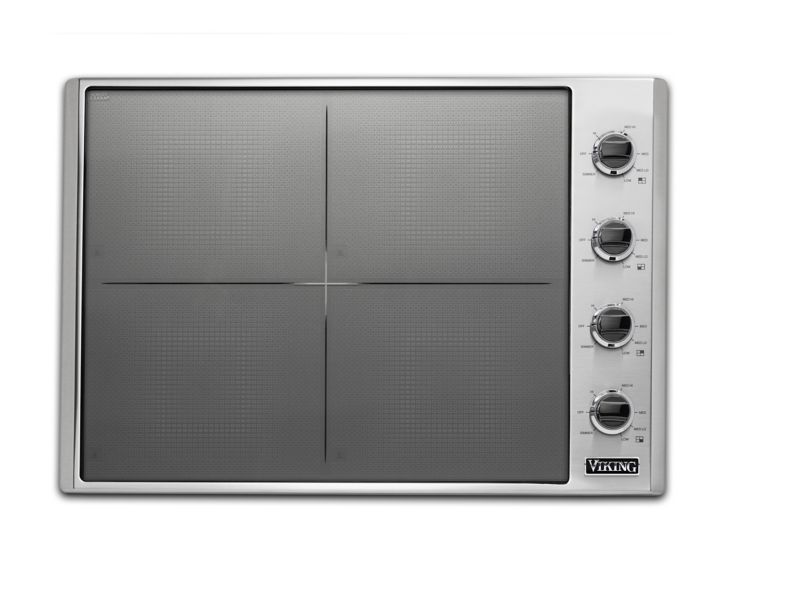

30" Viking Professional 5 Series Wide Built-In Induction Cooktop - VICU53014BST
Literature
You may also like
Features
MagneQuick Induction Elements
MagneQuick Induction Elements convert electricity into a magnetic field, which reacts with iron in your cookware and instantly transforms the pan into the heat source.
CoolLit LED Lights
EXCLUSIVE CoolLit LED Lights in signature Viking blue illuminate cooking zones while in use
TransMetallic Ceramic Surface
EXCLUSIVE TransMetallic Ceramic Surface is durable, wear resistant and easy to clean
Power Management System
Speeds boil time for your favorite dishes as well as providing a quick simmer for sauces.
Details
Commercial-Type Cooking Power
- Exclusive BlackChrome Knobs ship standard
- MagneQuick Induction Elements convert electricity into a magnetic field, which reacts with iron in your cookware and instantly transforms the pan into the heat source
- The heat is then quickly and efficiently transferred into your food, eliminating heat transfer loss into your kitchen and making induction cooking more than 90% efficient – the most energy efficient form of surface cooking
- Induction elements heat more quickly than gas or electric burners, saving time as well as energy
- Induction elements respond instantly to temperature adjustments, so when you lower the heat, you will see the results immediately, just as you see with a gas burner
- Since the heat is generated by the cookware itself, the cooktop surface remains cooler and less prone to cooked on spillovers - much easier to clean than traditional electric cooktops
- Large 9" induction elements each provide up to 3,700 watts of power and provide the highest combined element rating in the industry
- 30"W. model has 4 large 9"– 3,700 watt/2,300 watt induction elements
- Power Management System provides a boost of superior power on all elements for faster boiling
- Simmer setting is perfect for gentle melting or keeping cooked food warm
Safe, Easy, Operation
- EXCLUSIVE CoolLit LED Lights in signature Viking blue illuminate cooking zones while in use
- Child-proof, push-to-turn metal knobs for safe use
- Element lights indicate hot surfaces and active elements
- Sensor turns off element if cookware is not detected within 60 seconds
Easy Maintenance and Cleanup
- EXCLUSIVE TransMetallic Ceramic Surface is durable, wear resistant and easy to clean
- Durable laser-etched graphics withstand the rigors of regular cleaning
- Removable knobs for quick, simple cleaning
Model Numbers
- VICU53014BST – 30"W. Induction Cooktop; four burners
Color Finishes
Available in Stainless Steel/TransMetallic Glass (ST)
| Technical Specifications | |
|---|---|
| Overall Width | 30-3/4” (78.1 cm) |
| Overall height from bottom, To top of knobs, To top of cooking surface, To bottom edge of frame | 5-3/8” (13.7 cm) 4-3/8” (11.1 cm) 3-1/8” (7.9 cm) |
| Overall Depth from rear | 21” (53.3 cm) |
| Cutout Width | 28-1/2” (72.4 cm) minimum to 29” (73.7 cm) maximum |
| Cutout Depth | 19-3/8” (49.2 cm) minimum to 19-7/8” (50.5 cm) maximum |
| Electrical Requirements | 240-208/120 VAC; 50/60Hz; factory-installed 4ft. (121.9 cm) flexible steel conduit 3-wire conduit with a No. 10 ground wire; located on the right rear corner of unit |
| Maximum Amp Usage | 240V - 32.2 amps (7.7 kW) , 208V - 27.9 amps (5.8 kW) |
| Surface element rating | (4) 9” (22.9 cm) 2,300 watt / 3,700 watt boost |
| Approximate Shipping Weight | 52 lb. (23.6 kg) |
