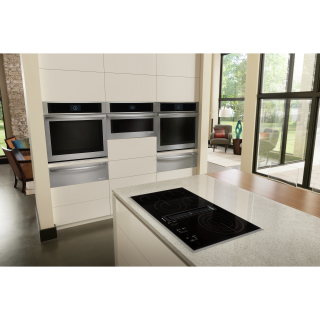

36" Jenn-Air Electric Downdraft Cooktop - JED4536KS

36" Jenn-Air Electric Downdraft Cooktop - JED4536KS

36" Jenn-Air Electric Radiant Downdraft Cooktop in Black - JED4536KB

Category : Cooktops
SKU : JED4536KS
SKU: JED4536KS
SKU: JED4536KB


Literature

Top 3 Features

Emotive Controls

Striking and inviting controls with LED lighting unleash performance at your touch.

JX3™ Downdraft Ventilation System with 3 Speeds

Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

Lustre Brushed Metal Design

Blur the lines of temptation with hairpin corners of lustrous brushed metal that will leave you reeling. The tight seams and joints seamlessly frame an obsidian black glass surface.

Additional Features

10”/6” Dual-Choice™ Element (3,000 Watt)

This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.

12"/9"/6" Triple-Choice™ Element

This three-tiered element reaches a high of up to 4,500 watts at its highest setting and can reach a low of 1,050 watts allowing you to experience the ultimate versatility in power levels, accommodating various-sized cookware.

Two 6 Inch Elements

Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power.

8 Inch Element

A heating element sealed underneath a ceramic glass cooking surface that offers up to 1,800 watts of power.

Perimetric Extraction

Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

Radiant Elements

Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command.

297 CFM Motor Class Blower

A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class.

Hot Surface Indicators

Light(s) positioned at the controls instantly show which element is still hot – even if the element has been turned off.

Badasses at the Ready

Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.

Serviced by a Select Few

We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

Optional Duct-Free Ventilation Kit

Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)

Duct-Free Filter

Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.

Cooktop Details
Left Front Element-Burner TypeHyper
Left Front Element-Burner Power1300W
Center Front Element-Burner Size10"/6"
Center Front Element-Burner Power3000W/1400W
Left Rear Element-Burner Size8"
Center Rear Element-Burner Size6"
Left Front Element-Burner Size6"
Center Rear Element-Burner Power1200W
Number of Cooking Element-Burners5
Cooktop Surface ColorBlack
Cooktop Element StyleRadiant
CONTROLS
Control TypeElectronic Touch
Control LocationRight Front
Infinite Heat ControlsNo
Features
Power Outage CompatibleNo
SelectionConvertible to Duct Free Ventilation,JX3 Downdraft Ventilation System with 3-Speed Fan
Power BoostNo
LP ConvertibleNo
GriddleNA
Installs Over Built-In OvenNo
Heating Element On Indicator LightYes
Downdraft VentYes
Automatic Pan DetectionNo
Digital DisplayYes
Hot Surface Indicator LightYes
Description
Size (in.)36
Fuel TypeElectric Radiant
Cooktop TypeDowndraft
Certifications
ULYes
Energy Rating (kWh/year)258
ADA CompliantYes
Prop 65Standard
Dimensions
Net Weight82.9
Gross Weight98
Carton Width41 1/2
Carton Height23 13/16
Carton Depth26 7/16
Maximum Height18 23/32
Cutout Width34 9/16
Cutout Depth21 1/8
Height3 21/32
Width36 5/16
Depth22 1/16
Cooktop Details
Center Rear Element-Burner TypeSingle
Left Rear Element-Burner Power1800W
Right Rear Element-Burner Power4500/3100/1550W
Left Rear Element-Burner TypeSingle
Right Rear Element-Burner Size12"/9"/6"
Right Rear Element-Burner TypeTriple
Center Front Element-Burner TypeDual
Details
Cooktop Surface MaterialCeramic Glass
ELECTRICAL
Amps40
Power Cord IncludedNo
Volts220
VENTILATION SYSTEM
CFM Motor Class310
Number of Speeds3
Refinement
StyleCooktops
Energy
Annual Energy Usage [kWh]258
Design Type
Design ExpressionStainless Steel
