30" Fisher & paykel Dual Fuel Range - OR30SCG6B1

30" Fisher & paykel Dual Fuel Range - OR30SCG6B1

30" Fisher & paykel Dual Fuel Range - OR30SCG6X1

30" Fisher & paykel Dual Fuel Range - OR30SCG6W1

30" Fisher & paykel Dual Fuel Range - OR30SCG6R1

Category : Ranges
SKU : OR30SCG6B1
SKU: OR30SCG6B1
SKU: OR30SCG6X1
SKU: OR30SCG6W1
SKU: OR30SCG6R1


Literature

Heritage styling with contemporary performance in this 30 Fisher & Paykel Freestanding Range. You can cook several dishes at the same time with its spacious gas cooktop and generous convection oven. Instant heat and precise control add to the classic stylish brushed stainless steel with black glass finish.

  • Gas cooktop with four burners
  • Convection oven with 3.5 cu.ft total capacity
  • Nine oven functions including Roast, Aero Pastry with pizza mode and rapid proof for making bread
  • Safety features include triple-glazed CoolTouch door and fully extending sliding shelves
  • Self-cleaning with heat-proof shelf runners
  • Warmer drawer

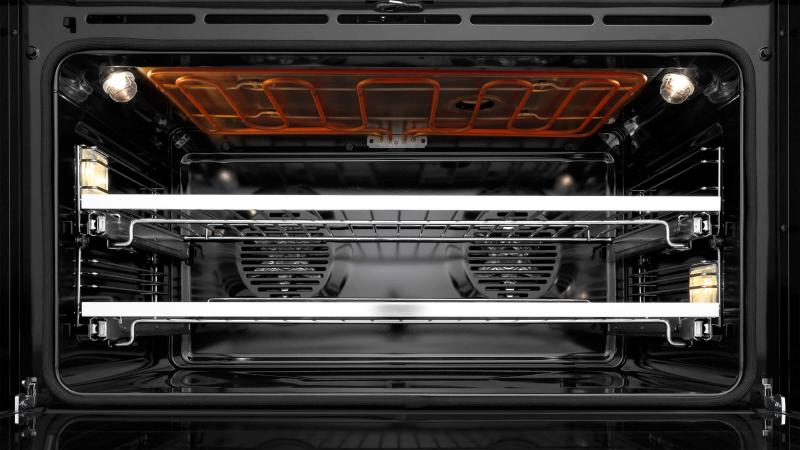

Multi-shelf cooking

Our AeroTech system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.

Quality and durability

Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop trivets and glowing halo dials all add up to an exceptional, premium range.

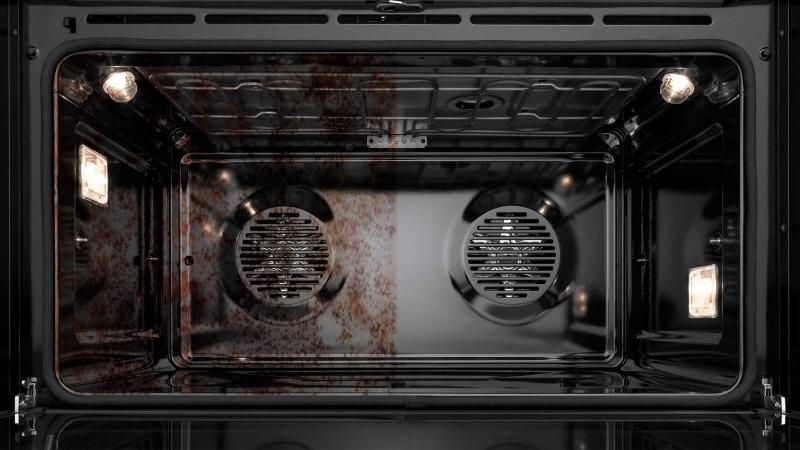

Easy to clean

Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The self-clean function breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.

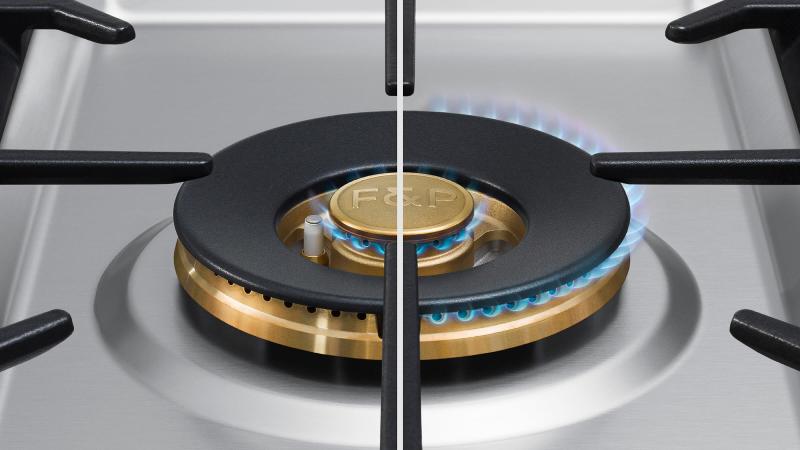

Burner power & control

Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.

Large capacity oven

The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once.

Even heat

Accurate, electronically-controlled oven heat ensures a great result every time.

Details
UPC Code822843813179
Warranty
Warranty2 years
Cooktop Features
Brass burner spreader (power burner)Yes
Dishwasher safe trivetsYes
Embossed brass burner cap (power burner)Yes
Gas Cooktop- Sealed range topYes
Hob railYes
LPG/Natural gas compatibleYes
Oven Features
AeroTech technologyYes
Automatic rapid pre-heatYes
Concealed elementYes
Electronic oven controlYes
Full extension telescopic sliding shelves2 sets (part 578776)
Internal light2 x 25W halogen (rear)
Pyrolytic proof shelf runnersYes
Self cleaningYes
Soft open/close doorYes
True ConvectionYes
Warming drawerYes
Installation cutout dimensions
Depth25 1/4
Width30
Cooktop Performance
Dual wok burner inner / outer (LPG) x21000 - 18000BTU
Dual wok burner inner / outer (natural gas) x21000 - 18000BTU
Max burner power18000BTU
Number of burners4
Semi-rapid burner (LPG) x21500 - 8000BTU
Semi-rapid burner (natural gas) x21500 - 8000BTU
Total cooktop power52000BTU
Oven Performance
Broil4050W
CoolTouch doorTriple glazed
Shelf positions7
Total oven capacity3.5cu ft
Warming drawer220W
Oven functions
Aero BakeYes
Aero BroilYes
Aero Pastry with Pizza modeYes
BakeYes
Maxi BroilYes
Number of Functions9
Rapid proofYes
RoastYes
Self-cleanYes
True AeroYes
Cleaning
Acid resistant graphite enamelYes
Dishwasher safe trivetsYes
Drop down grill elementYes
Pyrolytic Self-cleanYes
Pyrolytic proof shelf runnersYes
Removable oven door/sYes
Removable shelf runnersYes
Safety
Advanced cooling systemYes
Anti-tilt bracketYes
Auto re-ignition systemYes
Balanced oven doorYes
Catalytic venting systemYes
CoolTouch doorYes
Full extension telescopic sliding shelvesYes
Non-tip shelvesYes
Spill containment1/2 gallon
CONTROLS
Audio feedbackYes
Automatic cooking/minute timerYes
Automatic pre-set temperaturesYes
Bright chromed, cast zinc dials with illuminated halosYes
Celsius/Fahrenheit temperatureYes
Electronic clockYes
High resolution displayYes
Interior lightYes
Laser etched graphicsYes
Precise electronic temperature controlYes
Sabbath modeYes
Turned stainless steel clock buttonsYes
Turned stainless steel clock crown (dial)Yes
Power Requirements
AMP draw30A
Supply frequency60Hz
Supply voltage208 - 240V
Gas requirements
Supply Pressure (LPG)11 W.C.P
Supply Pressure (natural gas)4 W.C.P
Accessories
2-pc grill system (Broil pan & Grill rack)Yes
Broil panYes
Full extension sliding shelves2 sets (part 578776)
Grill rackYes
Hob rear trim (optional)3 1/8 (part 81656)
Kick strip, stainless steel (optional)Part 81660
Pyrolytic proof shelf runners1 set
Small pot support1 (part 533981 cast)
Wok stand1 (part 534678)
Style And Series
Product StyleClassic
