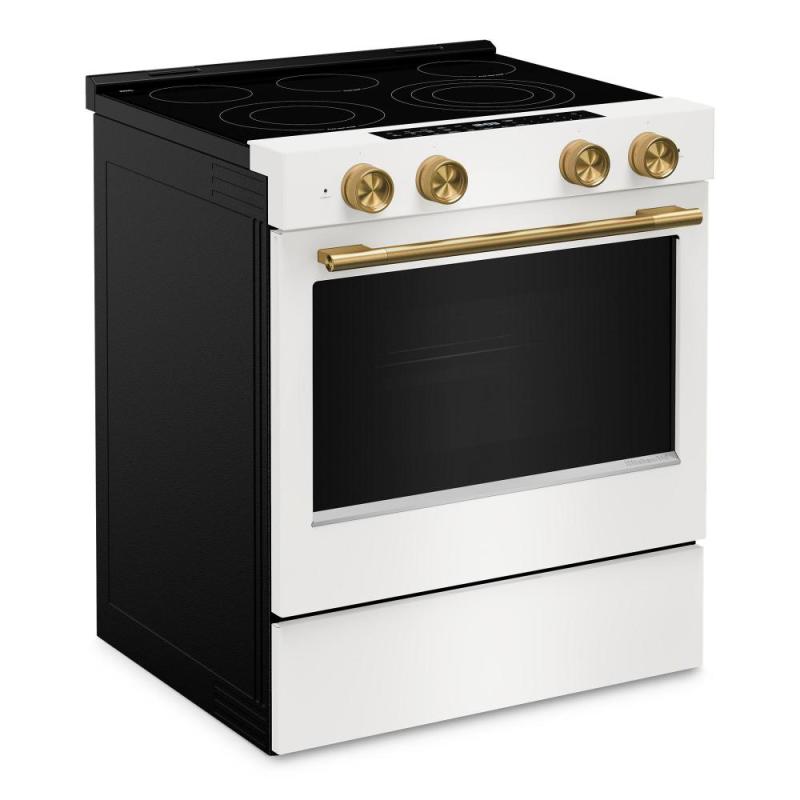

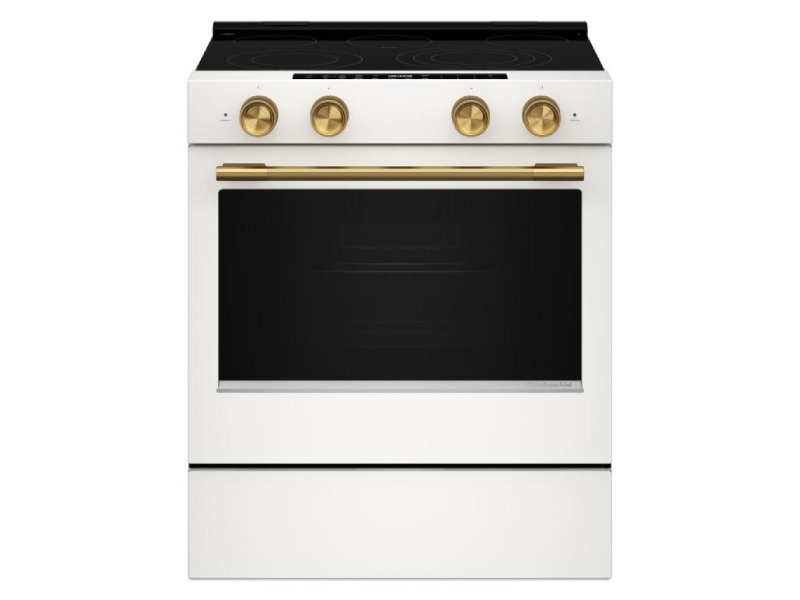

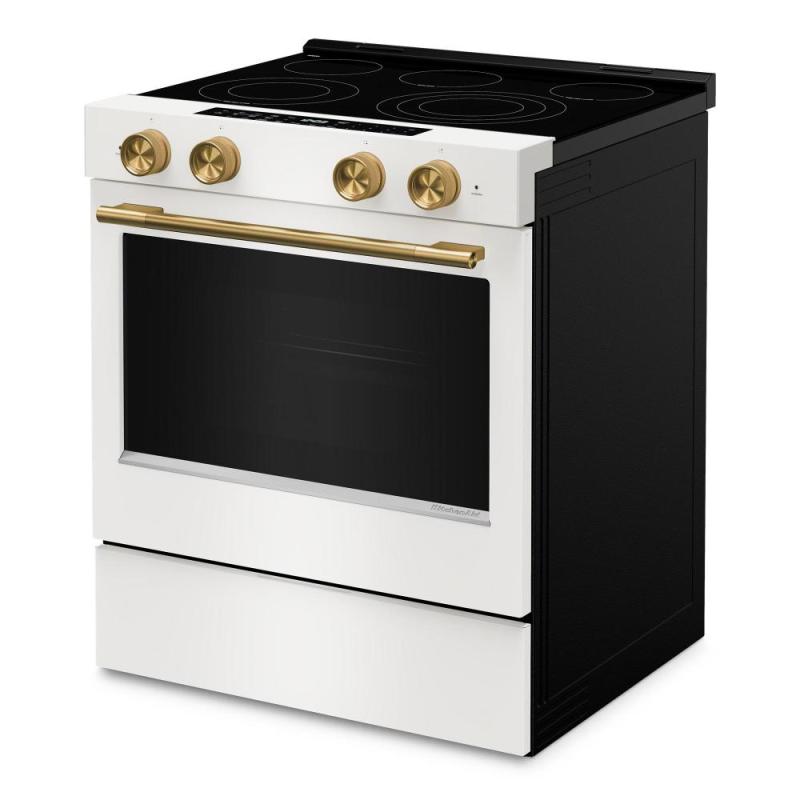

30" Kitchenaid 5.3 Cu. Ft. Slide-in Electric Range - YKSES530SPL

Category : Ranges
SKU : YKSES530SPL


Literature

Top Features

Most Powerful KitchenAid 30-Inch Electric Range Available

Our Most Powerful 30-Inch Electric Range Available.* *Based on total wattage.

Two Even-Heat™ Hyper Elements

offer precise control to find the sweet spot while cooking. The dual Even-Heat™ Hyper Element offers a 6-inch and a 9-inch element in one, making it ideal for boiling large pots, or small pans for various cooking tasks. An additional 6-inch Even-Heat™ Hyper Element is available to simmer sauces on a consistent low heat or take on searing, boiling, and stir-frying with even high heat.

Convection Cooking Modes

help you get consistent results with optimal heating temperatures for juicy roast meats, restaurant-style pizza with Fresh Pizza Mode, No Preheat Air Fry for crispy game day wings, and more.

Additional Features

Steam Bake Mode with Steam Bake Tray

provides additional moisture during baking, so you can enjoy Basque cheesecake and other delicious desserts with Steam Bake mode.

Smart Appliance

lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands-on or hands-off.* The KitchenAid™ App lets you conveniently preheat, proof, bake, and roast, plus store your favorite recipes for easy reference. *Wi-Fi & App required. Features subject to change. Amazon Alexa capabilities available in U.S. only. Google Assistant capabilities available globally. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada). Alexa, Google and certain other trademarks are owned by their respective companies.

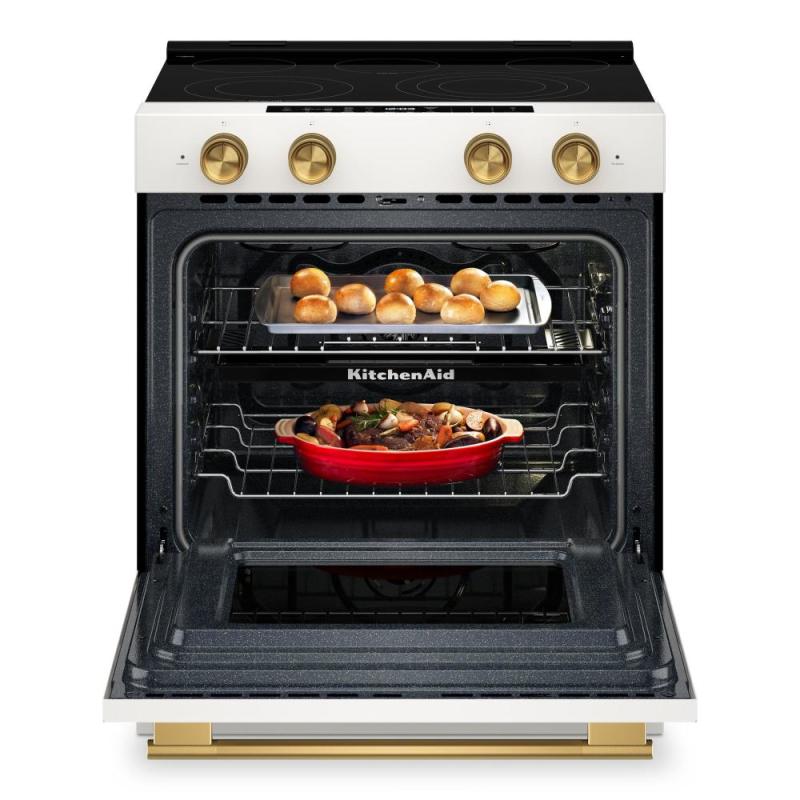

5.3 Cu. Ft. Capacity with Rapid Preheat

maximize your cooking potential with our spacious oven, designed to handle entire meals like a full turkey and sides simultaneously. Featuring an optimized oven design, it reaches 350°F in under 8 minutes*, reducing wait times and using up to 20% less energy.**
*Using Rapid Preheat to 350°F when cooktop is not in use.
**Compared to KSEG700E.

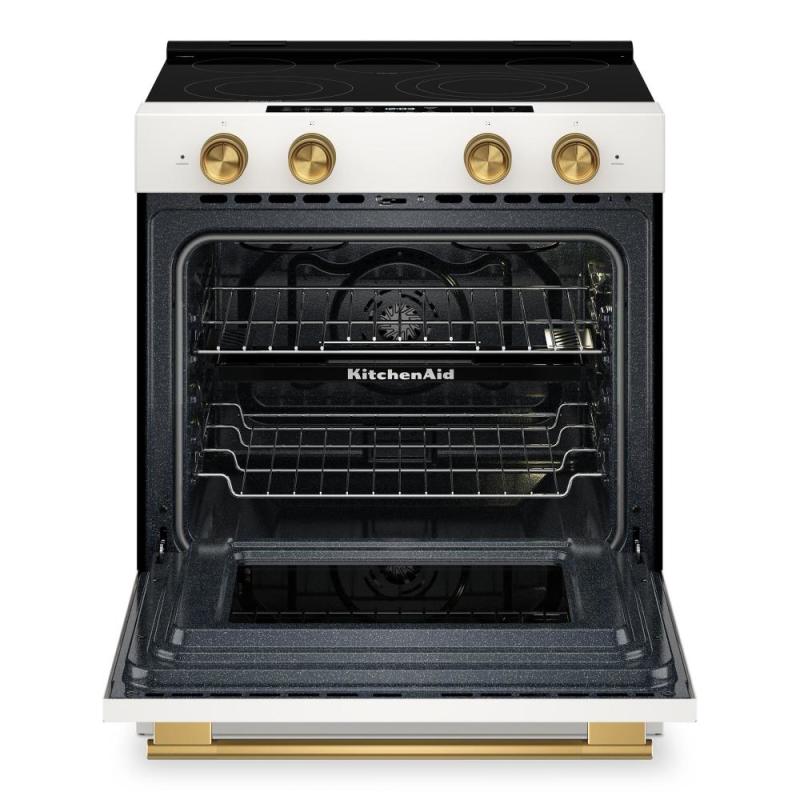

Even-Heat™ True Convection

features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful caramelized vegetables.

Edge-to-Edge Glass Cooking Surface

subtly integrates with your countertop, allowing you to move pots and pans easily from your counter to the cooking surface. Its clean, minimalist lines enhance your kitchen's design.

Steam Clean & Self-Cleaning Cycles

keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.

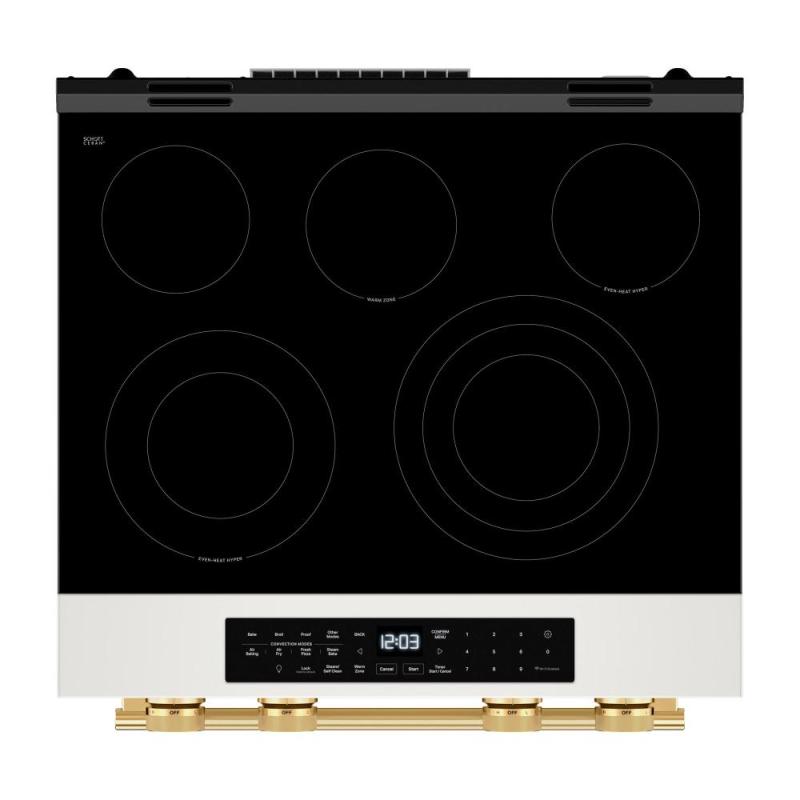

5 Cooking Elements Including a Warm Zone

provides five independent cooking surfaces that allow you to do more on your range. Two Even-Heat™ hyper elements allow precise control for simmering sauces or high heat cooking. The triple cooking zone accommodates a 6-inch, 9-inch or 12-inch pan depending on your cookware size. And a standard 6-inch element and a dedicated warm zone allow you to cook more at once, while keeping dishes at the perfect serving temperature.

No Preheat Air Fry Mode

lets you save time and skip preheating while you get crispy and browned food while using less oil than traditional deep frying. Dishwasher-safe basket sold separately.

Fresh Pizza Mode

helps you create homemade, restaurant-style pizzas from the comfort of your kitchen. This setting cranks the heat to 550°F for delicious results.

No Preheat Reheat

brings yesterday's meal back to life quickly, without the need for a microwave.

No Preheat Slow Cook

seal in flavors of juicy roasts, stews, and braised foods with No Preheat Slow Cook for savory comfort meals without the need for a countertop slow cooker.

Air Baking

helps you craft delicious cakes, muffins, last-minute bake sale treats, and more, with even results on multiple racks.

Air Roast

seals in the flavors and juices of meat and poultry for a hearty, comforting meal.

Air Broil

melts, chars and sears quickly using intense air-driven heat to create toasted treats, melty grilled cheese and more.

Proof Mode

is designed to maintain a low temperature and provides ideal conditions to properly activate yeast, allowing your baked goods to rise.

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

LCD Glass Touch Controls

offer an intuitive, easy-to-use touch screen experience.

6-Inch Warm Zone

keeps dishes at the perfect serving temperature while you finish preparing the rest of your meal.

Storage Drawer

adds additional storage space that’s perfect for pots, pans and baking sheets.

Sabbath Mode

to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven can be set to Sabbath baking and will maintain a constant temperature with lights, displays and tones disabled.

Energy Star® Certified

to exceed government standards for energy efficiency, supporting sustainability and helping to save money on utility bills.

-

-

Dimensions
Depth25.4 "
Width29.9 "
Height36.6 "
Carton Depth31.0 "
Carton Height43.0 "
Carton Width32.0 "
Depth Closed Excluding Handles27.4 "
Depth Closed Including Handles29.2 "
Depth With Door Open 90 Degree47.9 "
Gross Weight195.0 lbs
Maximum Height38.1 "
Minimum Height36.6 "
Capacity FT3 (cubic feet)5.3
Cutout Depth24.0 "
Cutout Height36.0 "
Cutout Width30.0 "
Net Weight179 lbs
Details
Automatic Shut OffYes
Number Of Oven Racks2
Number Of Oven Lights1
Interior ColorBlack
Hidden Bake ElementHidden
Cooktop Surface MaterialGlass
Convection FunctionsNo
Convection Element TypeTrue-Bow Tie
Broiler LocationTop Center
Broiler Element Power3400W
Bake Element Power2400W
Number Of Rack Guides5
Rack Guide TypeEmbossed
Oven Rack TypeMax Capacity Steam Rack
Oven Light TypeHalogen
Oven Light Switch LocationOven Control
Oven Interior Width In Inches24.2
Oven Interior Depth In Inches19.0
Oven Cooking SystemTrue Convection
Oven Control TypeElectronic Touch
Oven Control LocationFront Control
Cleaning TypeSteam Clean
Description
Range TypeSlide-in
Size In30
Cooktop Details
Right Rear Element Burner TypeEven-Heat
Right Rear Element Burner Size6in.
Right Rear Element Burner Power1300W
Right Front Element Burner TypeTriple
Right Front Element Burner Size12in./9in./6in.
Right Front Element Burner Power3000W
Number of Burner5
Left Rear Element Burner TypeStandard
Left Rear Element Burner Size6in.
Center Rear Element Burner Size6in.
Left Rear Element Burner Power1200W
Left Front Element Burner TypeDual
Left Front Element Burner Size10in./6in.
Left Front Element Burner Power3200W
Cooktop Element StyleCeran
Cooktop Control TypeKnobs
Cooktop Control LocationFront
Cooktop ConfigurationAll Burners
Center Rear Element Burner TypeWarming
Center Rear Element Burner Power100W
Features
SelectionAuto On Bake Broil Cancel/Off Clock Control Lock Convect Modes Cook Time Indicator Delay Start Keep Warm/Warm Hold Language Conversion No Preheat - Frozen Rapid Preheat Reheat Sabbath Mode Start Time Stop Time Timer
Power Outage CompatibleYes
Hot Surface Indicator LightYes
Heating Element On Indicator LightYes
GriddleNo
Automatic Convection Conversion Temperature AdjustNo
Exterior
Drawer TypeStorage Drawer
Door RemovableYes
Handle TypeReach Through Handle
Handle MaterialMetal
Energy
Annual Energy Usage Kwh564
Certifications
Energy Rating Kwh Year564
ULYes
ADA CompliantYes
Star K CertifiedStar K Certified
CULYes
ELECTRICAL
Hz60.0
Watts12300.0
Volts208.0
Power Cord IncludedYes
Amps40.0
Specifications
CustomizableYes
Ebl AccessoriesW11773969, W11773970, W11773971
AestheticNew Design
Launch DateOctober 2026
Extended Service Plan ParentEW07IW1Y, EW07IW2Y, EW07IW4Y
Optional Accessories4396096RB, W11692811
Country Of OriginUSA
Dishwasher SafeNo
CONTROLS
Control TypeKnobs
Knob TypeWeighted
Compatibility
Works WithAmazon Alexa Android Google Assistant Nest iOS
ConnectivityApp Bluetooth Remote Access Voice Controlled WiFi
Configuration
Range ConfigurationSlide-In
Oven ConfigurationSingle Oven
Configuration and Overview
Fuel TypeElectric
Appearance
Oven DoorGlass
